- Description

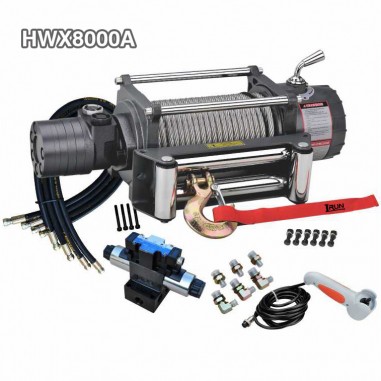

8000 lbs Hydraulic Winch Item No. HWX8000A
Features:
1. Full steel reducer gear
2. Low oil flow stable working motor
3. Vehicle’s existing steering power pump drive
4. Sliding geared ring clutch
5. Automatic screw cone braking action
6. Free spooling clutch
7. DC 12V or DC 24V Power drive optional
8. Wire remote control
9. Wireless remote control available
10. SWR tensioner available
11. Can not use it working as lift
HWX8000U/A
SPECIFICATION | |
Rated line pull | 8000 lbs (3629kgs) |
Motor: permanent magnet | 65ml/r |
Oil Flow | 5~45L/min |
Pressure | 8.5Mpa |
Gear reduction ratio | 28:1 |
Cable (Dia.× L) | Ø21/64″×95 ‘ (Ø8.3mm×29m) |
Drum size (Dia.× L) | Ø2.48″×8. 8″ (Ø63mm×223mm) |
Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3mm) 4-M12 |
Line pull lbs (kgs) |
Pressure Mpa(Psi) |
Flow G/min (L/min) |
Line speed ft/min(m/min) |
0 |
2.0(290.1) |
1.3(5) |
1.6(0.5) |
4000(1814) |
3.6(522.1) |
2.6(10) |
3.6(1.1) |
6000(2722) |
6.5(942.7) |
5.3(20) |
7.5(2.3) |
8000(3629) |
8.5(1232.8) |
9.2(35) |
12.8(3.9) |
11.9(45) |
17.4(5.3) |
Layer of cable |
Rated line pull lbs(kgs) |
Total rope on drum ft (m) |
|
1 |
8000(3629) |
20.0(6.1) |
|
2 |
6529(2962) |
44.3(13.5) |
|
3 |
5515(2502) |
72.2(22.0) |
|
4 |
4773(2165) |
95.1(29.0) |
ITEM | HWX8000A | HWX8000U | |
Overall dimensions | 21.7″×6.9″×8.5″ | 21.7″×6.9″×10.6″ | |
(L×W×H) | 550mm×174mm ×217mm | 550mm×174mm ×270mm | |
Net weight (Ibs) | 87.5 | 87 | |
(kgs) | 39.7 | 39.5 |
Overall Dimensions 21.6″ x 6.3″ x 8.54″
(L x W x H) 550mm x 160mm x 217mm
Net Weight 39.7 KGS
Looking for ideal 4×4 hdyraul Winch 8000 Lb Manufacturer & supplier ? We has a wide selection at great prices to help you get creative. All the Vehicle Recovery hydraulci Winches are quality guaranteed. We are China Origin Factory of Hydraulic Offroad Winch 8000 Pound. If you have any question, please feel free to contact us.
