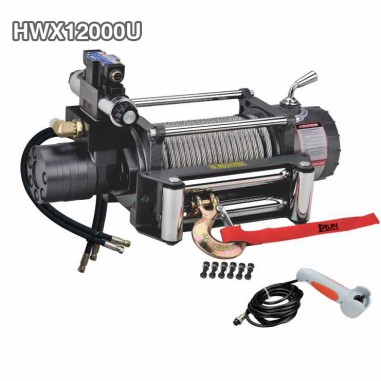

4x4 Hydraulic Winch 12000 lb with Electric Valve Control
The HWX12000U 4x4 hydraulic winch combines 12,000 lb rated first-layer pull with electric valve control, an all-steel planetary reducer and automatic screw-cone braking. It is intended for vehicle recovery equipment buyers, fleet integrators and distributors. Irun Winch accepts OEM orders, with DC 12V or 24V valve options and wireless control availability. Share the vehicle hydraulic specifications and required order configuration for assessment.
- 12,000 lb rated first-layer line pull with separate capacity data for subsequent rope layers.
- Two-stage planetary reducer with steel gears and a 28:1 reduction ratio.
- Automatic screw-cone braking and a clutch and speed-shift mechanism.
- Electric valve control options for DC 12V or 24V vehicle electrical systems.
- Wired remote control listed; wireless control and a steel wire rope tensioner available.
- Description
4x4 Hydraulic Winch 12000 lb with Electric Valve for Vehicle Recovery
The HWX12000U is a hydraulically driven pulling winch with electric valve control for vehicle recovery installations. Its listed first-layer capacity is 12,000 lb (5,443 kg). The model combines a 65 ml/rev motor displacement, a 28:1 two-stage planetary reducer and automatic screw-cone braking. Buyers should assess the complete installation, including hydraulic supply, drum-layer capacity, mounting clearance and control voltage.
Electric Valve Control and Remote Options for Recovery Operations
Match Valve Voltage to the Vehicle Electrical System
The optional DC 12V or 24V specification applies to the electric valve control circuit. Pulling power comes from the hydraulic supply, not from a 12V or 24V electric drive motor. This distinction matters when planning vehicle wiring and hydraulic installation.
- Specify the vehicle electrical voltage before selecting the valve configuration.
- Confirm the valve arrangement, wiring requirements and supplied control components.
- Define whether wired control alone is sufficient or wireless control is also required.
The original feature list includes wired remote control and states that wireless remote control is available. The quotation should identify the selected package rather than assume both controls are included.
Reducer, Clutch and Automatic Braking
The reducer uses steel gears and a two-stage planetary arrangement. The product information describes patented reducer and clutch designs, a speed-shift structure, automatic engagement of the clutch and two-gear actions, and automatic screw-cone braking.
- Steel reducer gears and a 28:1 reduction ratio define the listed transmission configuration.
- The clutch and speed-shift mechanism should be operated according to the model-specific manual.
- Brake inspection and maintenance requirements should be included in the installation review.
No additional speed ratio, shift-under-load capability or unlimited duty cycle is assumed. Patent details can be verified separately where required by a procurement specification.
Hydraulic Supply and Drum Layer Capacity for Installation Review
Check Available Flow and Pressure Together
The supplied specification lists oil flow of 5–45 L/min and pressure of 11 MPa. At the listed 12,000 lb operating point, the performance table gives 45 L/min, 11 MPa and a line speed of 5.3 m/min. The same line speed should not be assumed at a lower hydraulic flow.
- Provide pump flow and pressure at the intended connection point.
- Confirm circuit protection, return-line requirements and cooling arrangements with the installer.
- Review expected pulling duration and workload against the operating instructions.
The original features mention drive from the vehicle's existing power-steering pump. This is a possible installation arrangement, not universal vehicle compatibility. A shared steering circuit requires vehicle-specific engineering assessment before use.
Account for Rope Layers When Selecting Pulling Capacity
The 12,000 lb rating applies to the first rope layer. The supplied table lists lower capacity as additional layers build up on the drum, reaching 6,801 lb on the fourth layer. Recovery planning should therefore consider the working rope position as well as the headline rating.
This winch is for pulling and recovery only. It must not be used as a lifting device.
HWX12000U Specifications and Performance Data for Purchase Review
Product Specifications
| Specification | HWX12000U |
|---|---|
| Model number | HWX12000U |
| Rated first-layer line pull | 12,000 lb (5,443 kg) |
| Motor displacement | 65 ml/rev |
| Listed oil flow range | 5–45 L/min |
| Listed pressure specification | 11 MPa |
| Gear reduction ratio | 28:1 |
| Reducer construction | All-steel gears; two-stage planetary reducer |
| Clutch and shifting | Clutch and speed-shift structure with automatic engagement of clutch and two-gear actions, as described in the supplied features |
| Brake | Automatic screw-cone braking |
| Wire rope diameter and length | 10.2 mm × 25.5 m |
| Drum diameter and length | 63 mm × 223 mm |
| Mounting bolt pattern | 254 mm × 114.3 mm; 4-M12 |
| Listed overall dimensions, L × W × H | 550 mm × 174 mm × 270 mm; confirm against the current HWX12000U drawing |
| Listed net weight | 42.6 kg; original comparison table also lists approximately 94 lb |
| Electric valve control | DC 12V or DC 24V optional |
| Remote control | Wired control listed; wireless control available; supplied package subject to confirmation |
| Optional accessory | Steel wire rope tensioner |
| OEM orders | Accepted; specific requirements subject to order review |
| Packaging | Export carton |
| Transportation | Ocean or air freight |
| Place of origin | China |
| Certification information | Original listing states CE Certificate; confirm applicable documentation and model coverage before purchase |
| MOQ and lead time | To be confirmed for the selected configuration and quantity |
| Use restriction | Pulling and recovery only; not for lifting |
Listed Hydraulic Operating Points
These values follow the supplied performance table. Flow and pressure both change between rows, so this is not a constant-flow comparison of line speed at different loads. Confirm test conditions before using the data for hydraulic system design.
| Line pull, lb (kg) | Pressure, MPa | Flow, L/min | Line speed, m/min |
|---|---|---|---|
| 0 | 2.0 | 5 | 0.5 |
| 3,000 (1,361) | 3.3 | 10 | 1.1 |
| 6,000 (2,722) | 7.2 | 20 | 2.3 |
| 9,000 (4,082) | 9.2 | 35 | 4.0 |
| 12,000 (5,443) | 11.0 | 45 | 5.3 |
Line Pull and Cumulative Rope Capacity by Layer
Rope lengths below are cumulative totals on the drum, not the length of each individual layer.
| Rope layer | Listed line pull, lb (kg) | Total rope on drum, m (ft) |
|---|---|---|
| 1 | 12,000 (5,443) | 4.8 (15.7) |
| 2 | 9,563 (4,338) | 11.1 (36.4) |
| 3 | 7,949 (3,606) | 18.3 (60.0) |
| 4 | 6,801 (3,085) | 25.5 (83.7) |
HWX12000A and HWX12000U Model Comparison
The target model on this page is HWX12000U. HWX12000A is included for comparison; its height and weight must not be substituted for the U version.
| Item | HWX12000A | HWX12000U |
|---|---|---|
| Listed dimensions, L × W × H, in | 21.7 × 6.9 × 8.5 | 21.7 × 6.9 × 10.6 |
| Listed dimensions, L × W × H, mm | 550 × 174 × 217 | 550 × 174 × 270 |
| Listed net weight, lb | 94 | 94 |
| Listed net weight, kg | 42.8 | 42.6 |
Dimensions follow the supplied model comparison table. Obtain the current installation drawing before finalizing bumper clearance, mounting plates or vehicle frame interfaces.
OEM Configuration and Packaging Review for Hydraulic Winch Orders
Irun Winch provides OEM service and accepts OEM orders for this model. Listed configuration choices include electric valve voltage, wireless control availability and an optional steel wire rope tensioner. Other branding or engineering requests require confirmation rather than being treated as standard features.
- Electrical configuration: select DC 12V or 24V valve control.
- Remote control: specify wired control requirements and any wireless control request.
- Accessory selection: identify whether a steel wire rope tensioner is needed.
- Branding and packaging: submit logo artwork, label text and carton requirements for feasibility and cost review.
- Project modifications: provide drawings for any proposed mounting, hydraulic connection or structural changes; development and sample requirements must be assessed separately.
Irun Winch should confirm the accepted customization scope, included accessories, MOQ, production lead time and any sample terms in the quotation. No fixed sample schedule or fee policy is stated in the supplied information.
Recovery Vehicle Applications and Selection for Equipment Buyers
This model is a candidate for vehicle-mounted recovery installations where its pulling capacity, hydraulic requirements and mounting dimensions match the project. It is not a standalone portable winch, and electrical valve voltage alone does not establish vehicle compatibility.
- Vehicle equipment integrators assessing hydraulic recovery systems for 4x4 platforms.
- Fleet buyers specifying pulling equipment for service and recovery vehicles.
- Distributors selecting an OEM hydraulic winch configuration for their product range.
Compare vehicle requirements with the layer-specific capacities before approving a model. The hydraulic 4x4 winch category provides the related product family for further model comparison.
Typical OEM Procurement Scenario for a 12000 lb Recovery Winch
The following example describes a possible procurement review for an equipment distributor preparing a vehicle recovery product specification. It is an illustrative scenario, not a verified customer project.
Buyer Requirement
The distributor would need a defined 12,000 lb first-layer rating, a control voltage matched to its customers' vehicles, and clear dimensional information for installation partners. It would also need to distinguish wired control, optional wireless control and requested packaging details.
Solution
Irun Winch would review the HWX12000U configuration against the submitted requirements, including available hydraulic supply, the selected valve voltage, remote control package and OEM artwork. Any requested modifications would require separate technical review, and installation clearance would be checked against the current U-version drawing.
Result
The intended outcome is an agreed order specification identifying the exact model, control configuration, accessories, packaging and documentation. Order approval would depend on confirmed fitment, quoted commercial terms and the buyer's technical review. No actual delivery result or field performance is claimed.
4x4 Hydraulic Winch Questions on Valve Control and Model Fitment
Is the HWX12000U an electric or hydraulic winch?
It is a 4x4 hydraulic winch. Hydraulic power drives the pulling mechanism; DC 12V or 24V applies to the optional electric valve control circuit.
Does the 12,000 lb capacity apply at every rope layer?
No. The supplied table lists 12,000 lb on the first layer, 9,563 lb on the second, 7,949 lb on the third and 6,801 lb on the fourth. Assess the capacity at the intended working rope position.
What hydraulic supply should the buyer check?
The specification lists 5–45 L/min and 11 MPa. The listed full-load operating point uses 45 L/min at 11 MPa. Confirm the pump, circuit protection and installation requirements against the current technical documentation.
Can an existing power-steering pump be used?
The original feature list identifies this as a possible drive arrangement. Flow, pressure and steering-system requirements must be assessed for the specific vehicle. It must not be treated as a universal plug-in installation.
Are wired and wireless controls both included?
Wired remote control is listed, while wireless remote control is described as available. Irun Winch should confirm the supplied control package and valve voltage in the order specification.
How do the A and U versions differ in the supplied data?
The table lists HWX12000A at 550 × 174 × 217 mm and 42.8 kg, and HWX12000U at 550 × 174 × 270 mm and 42.6 kg. Other version differences require confirmation; do not infer them from the model suffix alone.
What are the MOQ, sample terms and production lead time?
These details are not specified in the supplied product information. Irun Winch should confirm them for the required quantity, valve configuration, OEM scope and delivery requirements.
What documentation and use restrictions should buyers review?
Request the current drawing, operating instructions, maintenance requirements and applicable compliance documents. The listing states CE Certificate, but model coverage should be verified. This winch must not be used for lifting.
About Irun Winch and Its Vehicle Winch Development Capabilities
Zhejiang Jinhua Runye Tech. Co., Ltd. (Irun Winch), established in 1997, develops and manufactures vehicle winches and off-road accessories. Its range includes hydraulic, electric and industrial winches for recovery, towing and engineering applications. The company's production capabilities include precision machining equipment, winch test systems and motor testing equipment. Irun Winch provides OEM service, with requirements for the HWX12000U reviewed against the selected model and application.
Details to Provide for an HWX12000U Configuration and Quotation
For a configuration review and quotation, provide the following order details:
- Required quantity, intended vehicle platform and recovery application.
- Available hydraulic flow and pressure, with the proposed pump or circuit arrangement.
- Mounting space or installation drawings, plus relevant pulling conditions.
- DC 12V or 24V valve selection, remote control preference and optional tensioner requirements.
- OEM logo files, label text and packaging requests, if applicable.
- Required delivery date, any sample request and documents needed for technical approval.
Irun Winch can review these requirements to define the proposed configuration. The quotation should confirm accessory scope, approved OEM details, MOQ, lead time and sample terms before order placement.
