4×4 Hydraulic Recovery Winch 12000 Pounds With Electric Valve
4x4 hydraulic recovery winch 12000lbs is a compact, high-performance pulling system designed for 4×4 off-road vehicles, light trucks and recovery applications. It combines a 12,000 lb line pull, automatic screw-cone braking and a patented two-stage planetary gear reducer for stable operation under continuous load. Irunwinches supports OEM branding, custom packaging and selected spec adjustments for distributors and fleet buyers.
- 12,000 lb rated line pull for serious off-road recovery and light towing.
- Patented two-stage planetary gear reducer with full steel gears for durable power transmission.
- Automatic screw-cone braking action for controlled operation under load.
- Electric valve control with wire or wireless remote options.
- OEM logo, color and packaging support for brand and distribution programs.
- Description
4×4 Hydraulic Recovery Winch 12000 Pounds with Electric Valve

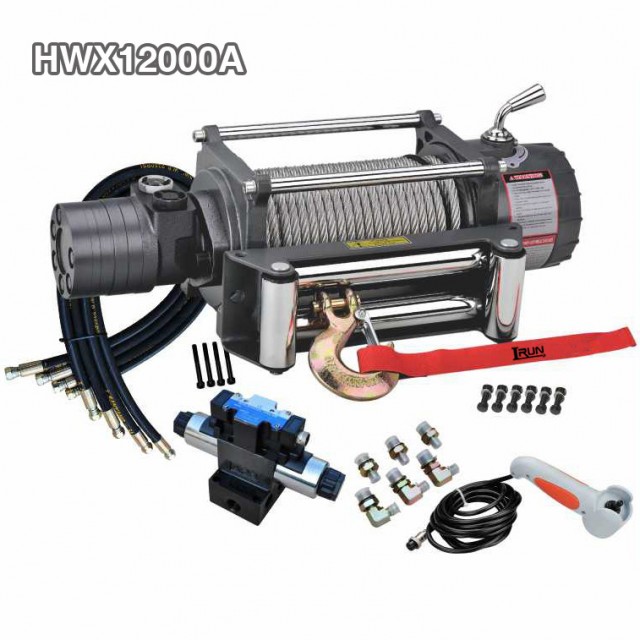

Item No. HWX12000A is a 12,000 lb hydraulic recovery winch designed for 4×4 off-road vehicles, light trucks and recovery tasks where compact size and reliable pulling force are critical. The winch uses a permanent-magnet hydraulic motor, a patented two-stage planetary gear reducer and an automatic screw-cone braking system to deliver stable performance in demanding off-road and recovery conditions. Each unit is supplied with steel wire rope, fairlead and essential hydraulic accessories to simplify installation.
Why This 4x4 Hydraulic Recovery Winch Matters for Off-Road and Recovery Work
Off-road recovery and light towing require a winch that can deliver strong line pull in a compact housing, while remaining reliable over repeated high-load cycles. This 4x4 hydraulic recovery winch 12000lbs addresses those needs through its gearbox, braking system and hydraulic drive.
- High line pull in a compact design: The 21.7″ × 6.9″ × 10.6″ housing fits tight 4×4 bumper and frame spaces while still providing 12,000 lb pulling capacity.
- Full steel reducer gear: Full steel reducer gear for improved durability under high-load off-road use.
- Efficient two-stage planetary gearbox: A patented 28:1 two-stage planetary gear reducer converts hydraulic flow into high torque at the drum, supporting sustained pulling at different line speeds.
- Patented clutch and speed-shift structure: Patented clutch and speed-shift structure with auto engagement of clutch and two-gear actions for smooth shifts between free spool and powered operation.
- Controlled braking under load: The automatic screw-cone braking action helps prevent uncontrolled spooling when positioning stuck vehicles or equipment on slopes.
- Low oil flow, stable motor: Designed to work with 5–45 L/min and up to 11 MPa, the motor can be driven by the vehicle's existing steering power pump in many 4×4 setups.
- Flexible control options: DC 12V or 24V electric valve control, wire remote and wireless remote options allow adaptation to different cab layouts and user preferences.
- Complete accessory support: SWR tensioner and other accessories are available to match different rigging and installation requirements.
How the HWX12000A Hydraulic Winch Works
The HWX12000A uses a permanent-magnet hydraulic motor (65 ml/r) driven by the vehicle's hydraulic circuit. Hydraulic flow and pressure determine drum torque and line speed, while the two-stage planetary gearbox amplifies torque to achieve the 12,000 lb rated pull. The automatic screw-cone brake engages when the control valve is closed, holding the load without relying on the motor alone. The patented clutch and speed-shift structure enables auto engagement of clutch and two-gear actions, supporting smooth shifts between free spool and powered operation. In many 4×4 setups, the winch can be driven by the vehicle's existing steering power pump.
Product Specifications
| Model No. | HWX12000A |
| Rated line pull | 12,000 lbs (5,443 kg) |
| Motor type | Permanent-magnet hydraulic motor, 65 ml/r |
| Hydraulic flow | 5–45 L/min |
| Working pressure | Up to 11 MPa (about 1,595 psi) |
| Gear reduction ratio | 28:1 (two-stage planetary) |
| Wire rope | Ø10.2 mm × 25.5 m (Ø13/32" × 83.7') |
| Drum size | Ø63 mm × 223 mm (Ø2.48" × 8.8") |
| Mounting bolt pattern | 254 mm × 114.3 mm (10" × 4.5"), 4-M12 |
| Overall dimensions (HWX12000U version) | 550 mm × 174 mm × 270 mm (21.7" × 6.9" × 10.6") |
| Net weight | 42.6–42.8 kg (about 94 lbs) |
| Certificate | CE Certificate |
| Packaging | Export carton |
| Brand | OEM order acceptable |
| Transportation | Ocean, Air |
| Place of Origin | China |
| Power drive | DC 12V or 24V electric valve control optional |
| Remote control | Wire remote standard; wireless remote available |
| Optional accessories | SWR tensioner available |
| Application note | Designed for pulling and recovery; must not be used as a lifting device |
Performance at Typical Operating Points
| Line pull | Pressure | Flow | Line speed |
|---|---|---|---|
| 0 lb | 2.0 MPa (290 psi) | 5.0 L/min (1.3 G/min) | 0.5 m/min (1.6 ft/min) |
| 3,000 lb (1,361 kg) | 3.3 MPa (479 psi) | 10.0 L/min (2.6 G/min) | 1.1 m/min (3.6 ft/min) |
| 6,000 lb (2,722 kg) | 7.2 MPa (1,044 psi) | 20.0 L/min (5.3 G/min) | 2.3 m/min (7.5 ft/min) |
| 9,000 lb (4,082 kg) | 9.2 MPa (1,344 psi) | 35.0 L/min (9.2 G/min) | 4.0 m/min (13.1 ft/min) |
| 12,000 lb (5,443 kg) | 11.0 MPa (1,595 psi) | 45.0 L/min (11.9 G/min) | 5.3 m/min (17.4 ft/min) |
Rope Capacity by Layer
| Layer of cable | Rated line pull | Total rope on drum |
|---|---|---|
| 1 | 12,000 lb (5,443 kg) | 4.8 m (15.7 ft) |
| 2 | 9,563 lb (4,338 kg) | 11.1 m (36.4 ft) |
| 3 | 7,949 lb (3,606 kg) | 18.3 m (60.0 ft) |
| 4 | 6,801 lb (3,085 kg) | 25.5 m (83.7 ft) |
Model Comparison: HWX12000A vs HWX12000U
| Item | HWX12000A | HWX12000U |
|---|---|---|
| Overall dimensions (L×W×H) |
21.7″ × 6.9″ × 8.5″ 550 mm × 174 mm × 217 mm |
21.7″ × 6.9″ × 10.6″ 550 mm × 174 mm × 270 mm |
| Net weight | 94 lbs (42.8 kg) | 94 lbs (42.6 kg) |
OEM Customization Options
Irunwinches supports OEM and light customization for this 4x4 hydraulic recovery winch 12000lbs to meet distributor, brand and fleet requirements.
- Logo and branding: laser marking or nameplate on winch body and packaging.
- Color and finish: housing color and surface treatment can be adjusted for brand identity.
- Packaging: custom boxes, manuals and labels for retail or distribution programs.
- Hydraulic and electrical configuration: electric valve voltage (DC 12V/24V), hose length and fitting types can be adapted to match existing vehicle layouts.
- Remote control: wire remote as standard, with wireless remote available as an option for different operator preferences.
- Sample and development: for larger projects, sample units and minor spec adjustments can be arranged based on confirmed drawings or requirements.
Applications and Typical Buyers
This 12,000 lb hydraulic recovery winch is suitable for off-road 4×4 vehicles, light trucks and recovery operations where compact size and reliable pulling force are important.
- Off-road 4×4 owners and clubs needing reliable winches for trail recovery and self-recovery.
- Light truck and SUV fleets operating in farm, ranch, mining or remote areas.
- Towing and recovery companies that use smaller 4×4 or light trucks for quick response jobs.
- Distributors and brand owners looking for compact hydraulic winches with OEM branding and custom packaging.
Case Study
An off-road equipment distributor needed a compact 12,000 lb hydraulic winch for 4×4 vehicles, with custom branding and flexible control options.
Buyer Requirement: The buyer required a winch with strong line pull, compact housing for tight bumper spaces, and support for both wire and wireless remote control.
Solution: Irunwinches supplied the HWX12000A 4x4 hydraulic recovery winch 12000lbs with custom nameplate, branded packaging and electric valve options compatible with DC 12V and 24V systems.
Result: The winch was integrated into 4×4 bumpers with minimal modification, and the branded units supported the distributor's program for off-road retail and fleet customers.
FAQ
What vehicles and applications is this 4x4 hydraulic recovery winch 12000lbs suitable for?
This winch is designed for 4×4 off-road vehicles, light trucks and recovery tasks where a compact housing and 12,000 lb line pull are needed for self-recovery and assisting other vehicles.
What hydraulic flow and pressure does the HWX12000A require?
The winch operates with a hydraulic flow of 5–45 L/min and working pressure up to 11 MPa. Matching the vehicle's pump or power pack to these ranges is important for stable performance.
Can this 4x4 hydraulic winch be customized for different brands or markets?
Yes. Irunwinches can adjust logo, color, packaging and certain hydraulic and electrical configurations for brand owners and distributors. Sample units and minor spec changes can be arranged for larger projects.
What is included in the standard package?
The standard package includes the winch unit, steel wire rope, fairlead and essential hydraulic accessories, packed in an export carton. Remote control configuration depends on the selected option (wire or wireless).
What information is needed to get an accurate quotation?
To prepare a precise quote, please share the target quantity, vehicle or application type, preferred voltage and remote control option, any customization needs such as logo or packaging, and whether samples or specific test documents are required.
About Irunwinches
Irunwinches focuses on the design and manufacture of hydraulic winches, electric winches and related recovery equipment for truck, 4×4 and industrial applications. The company works with B2B buyers, distributors and brand owners on standard models and customized specifications, and supports export orders with technical documentation and packaging adapted to different markets.
What to Prepare for a Quote
For inquiries on this 4x4 hydraulic recovery winch 12000lbs, please provide the target quantity, vehicle or application type, preferred voltage and remote control option, and any customization requirements such as logo, color or packaging. Sample needs and any required test or certification documents can also be shared to help prepare an accurate quotation.
