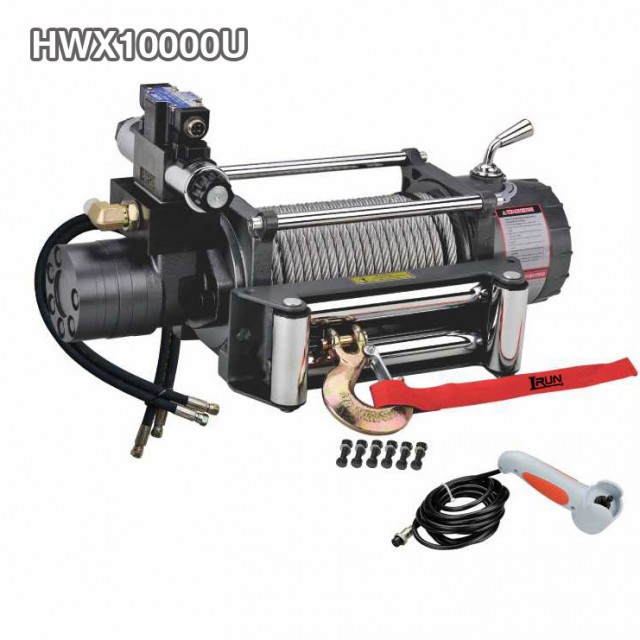

4x4 Hydraulic Winch 10000 lb with Automatic Screw-Cone Brake
The HWX10000U 4x4 hydraulic winch provides 10,000 lb rated first-layer line pull with automatic screw-cone braking and a two-stage planetary reducer. It is intended for recovery vehicle builders, fleet procurement teams and equipment distributors. Irun Winches accepts OEM orders; valve voltage, remote control configuration and branding requirements should be specified during order review. Share the vehicle application and hydraulic supply details for configuration assessment.
- 10,000 lb rated first-layer line pull, with capacity listed separately for each rope layer.
- All-steel reducer gears and a 28:1 gear reduction ratio.
- Automatic screw-cone brake with a clutch and speed-shift mechanism.
- DC 12V or 24V electric valve control options; wired control listed and wireless control available.
- Optional steel wire rope tensioner; pulling use only, not lifting.
- Description
4x4 Hydraulic Winch 10000 lb with Automatic Screw Cone Braking System
The HWX10000U is a hydraulic recovery winch for vehicle-mounted pulling applications. Its listed first-layer line pull is 10,000 lb (4,536 kg), supported by an all-steel two-stage planetary reducer and automatic screw-cone braking. For procurement teams, the main selection checks are hydraulic supply compatibility, available mounting space, rope-layer capacity and the required control configuration.
Braking and Gear Design for Controlled Vehicle Recovery Operations
Automatic Screw-Cone Braking
The product specification lists an automatic screw-cone brake as part of the winch mechanism. Buyers should assess this feature together with the installation instructions, operating limits and maintenance requirements rather than treating the rated pulling capacity alone as a complete suitability assessment.
- Confirm the permitted operating procedure and brake inspection requirements before installation.
- Keep the winch application within pulling and vehicle recovery duties.
- Do not use this winch as a lifting device or as a substitute for independent transport load restraints.
All-Steel Two-Stage Planetary Reducer
The listed reducer uses steel gears and a 28:1 reduction ratio. The original product information also identifies patented reducer, clutch and speed-shift designs. Where patent status is relevant to a procurement specification, supporting documentation should be verified separately.
- Reducer construction: all-steel gears.
- Gear arrangement: two-stage planetary reduction.
- Clutch and shift mechanism: automatic engagement of the clutch and two-gear actions, as described in the original specification.
The exact shift sequence and allowable engagement conditions should follow the model-specific operating manual. No additional gear ratio or shift-under-load capability is assumed here.
Hydraulic Supply and Control Checks Before Vehicle Installation
Match the Pump to the Required Operating Point
The supplied data lists a motor displacement of 65 ml/rev, oil flow of 5–45 L/min and a pressure specification of 10 MPa. The listed 10,000 lb performance point uses 10 MPa and 45 L/min. Operation at a lower flow must not be assumed to provide the same line speed.
- Provide available hydraulic flow and operating pressure at the proposed connection point.
- Confirm circuit layout, pressure protection, return-line requirements and cooling arrangements with the installer.
- Assess the intended recovery workload rather than assuming unlimited continuous operation.
The original feature list mentions drive from the vehicle's existing power-steering pump. This is a potential installation arrangement, not a statement of universal compatibility. Any shared steering circuit requires vehicle-specific engineering review before use.
Separate Hydraulic Drive from Electric Valve Voltage
The winch is hydraulically driven. The optional DC 12V or 24V specification refers to electric valve control, not an electric winch motor. Buyers should select valve voltage to match the vehicle's electrical system and confirm the required remote control package.
- Electric valve control: DC 12V or DC 24V options listed.
- Wired remote control: listed in the product features.
- Wireless remote control: available configuration, subject to order confirmation.
- Steel wire rope tensioner: available optional accessory.
HWX10000U Product Specifications and Order Configuration Details
| Specification | HWX10000U |
|---|---|
| Model number | HWX10000U |
| Rated first-layer line pull | 10,000 lb (4,536 kg) |
| Motor displacement | 65 ml/rev |
| Listed oil flow range | 5–45 L/min |
| Listed pressure specification | 10 MPa |
| Gear reduction ratio | 28:1 |
| Reducer construction | All-steel gears; two-stage planetary reducer |
| Brake | Automatic screw-cone braking |
| Wire rope diameter and length | 9.2 mm × 26 m, as listed; confirm rope diameter before ordering |
| Drum diameter and length | 63 mm × 223 mm (2.48 in × 8.8 in) |
| Mounting bolt pattern | 254 mm × 114.3 mm (10 in × 4.5 in); 4-M12 |
| Listed overall dimensions, L × W × H | 550 mm × 174 mm × 270 mm; verify against the current installation drawing |
| Listed net weight | 41.1 kg; original model table also lists 91.0 lb |
| Electric valve control | DC 12V or DC 24V optional |
| Remote control | Wired control listed; wireless control available; confirm supplied configuration |
| Optional accessory | Steel wire rope tensioner |
| OEM orders | Accepted; specific branding and packaging requirements subject to confirmation |
| Packaging | Export carton |
| Transportation | Ocean or air freight |
| Place of origin | China |
| Certification information | Original product listing states CE Certificate; verify model coverage and applicable documentation before purchase |
| MOQ and production lead time | To be confirmed for the selected configuration and order quantity |
| Use restriction | Pulling and recovery only; not for lifting |
Listed Pulling Performance at Different Hydraulic Operating Points
The following values reproduce the supplied performance data. Both flow and pressure vary between rows, so the table should not be read as a constant-flow load-versus-speed comparison. Confirm test conditions and the selected configuration before using these values for system design.
| Line pull, lb (kg) | Pressure, MPa (psi) | Flow, L/min (listed gal/min) | Line speed, m/min (ft/min) |
|---|---|---|---|
| 0 | 2.0 (290.1) | 5 (1.3) | 0.6 (2.0) |
| 4,000 (1,814) | 3.8 (551.1) | 10 (2.6) | 1.1 (3.6) |
| 6,000 (2,722) | 7.2 (1,044.2) | 20 (5.3) | 2.3 (7.5) |
| 8,000 (3,629) | 8.6 (1,247.3) | 35 (9.2) | 4.0 (13.1) |
| 10,000 (4,536) | 10.0 (1,450.3) | 45 (11.9) | 5.3 (17.4) |
Line Pull and Cumulative Rope Capacity by Drum Layer
The supplied layer table lists a lower pulling capacity as additional rope layers build up on the drum. The 10,000 lb rating applies to the first layer, not to every rope position. Total rope values below are cumulative lengths on the drum.
| Rope layer | Listed line pull, lb (kg) | Cumulative rope on drum, m (ft) |
|---|---|---|
| 1 | 10,000 (4,536) | 5.3 (17.4) |
| 2 | 7,969 (3,615) | 12.0 (39.4) |
| 3 | 6,624 (3,005) | 19.8 (65.0) |
| 4 | 5,667 (2,571) | 26.0 (85.3) |
HWX10000A and HWX10000U Dimensions and Weight Comparison
This page identifies HWX10000U as the target model. The HWX10000A information is retained for comparison only; dimensions and weights must not be interchanged between versions.
| Item | HWX10000A | HWX10000U |
|---|---|---|
| Overall dimensions, L × W × H, in | 21.7 × 6.9 × 8.5 | 21.7 × 6.9 × 10.6 |
| Overall dimensions, L × W × H, mm | 550 × 174 × 217 | 550 × 174 × 270 |
| Listed net weight, lb | 91.0 | 91.0 |
| Listed net weight, kg | 41.3 | 41.1 |
The dimensions above follow the supplied model comparison table. Obtain the current model-specific installation drawing before designing a bumper, mounting plate or vehicle frame interface.
OEM Order Options and Configuration Review for Distributor Projects
Irun Winches accepts OEM orders for this model. The confirmed product options include electric valve voltage, wireless remote control availability and an optional steel wire rope tensioner. Branding, packaging and any engineering changes should be reviewed separately before an order specification is finalized.
- Valve voltage: specify DC 12V or DC 24V to match the vehicle electrical supply.
- Control package: identify wired control requirements and whether wireless control is needed.
- Rope tensioner: state whether the optional steel wire rope tensioner is required.
- Branding and packing requests: provide logo files, label text and carton requirements for feasibility and cost confirmation.
- Engineering changes: submit proposed hose connections, mounting changes or other technical requirements for review; these are not assumed to be standard adjustments.
Irun Winches should confirm the approved configuration, supplied accessories, MOQ, production schedule and any sample or development terms in the quotation. No fixed sample lead time or sample-fee policy is stated in the supplied information.
Vehicle Recovery Applications and Fitment Review for Fleet Buyers
Potential buyers include recovery vehicle integrators, off-road equipment distributors and procurement teams selecting winches for service fleets. Suitability depends on the required pulling force, hydraulic installation and operating conditions, not simply on whether a vehicle is described as a 4x4.
- Recovery vehicle builders: assess mounting interfaces, hydraulic supply and control access during vehicle integration.
- Service fleet procurement teams: review loaded vehicle conditions, expected recovery resistance and rope-layer capacity.
- Equipment distributors: confirm model identity, order configuration and documentation for the intended market.
For comparison with other models, the hydraulic 4x4 winch category provides the relevant product family. This model is a vehicle-mounted hydraulic winch, not a standalone portable winch or a 12V electric-drive winch.
Typical Procurement Example for a Hydraulic Recovery Vehicle Build
This example illustrates a procurement review for a recovery vehicle integrator. It is not a completed customer case or a verified installation result.
Buyer Requirement
A recovery vehicle integrator assessing a 10,000 lb model would need to compare its required pulling force with the available hydraulic supply, bumper clearance and vehicle electrical voltage. The procurement specification should also define remote control requirements and whether a rope tensioner is needed.
Solution
Irun Winches would review the HWX10000U configuration against those requirements, including the listed 10 MPa pressure specification, 5–45 L/min flow range, mounting pattern and U-version dimensions. Any proposed use of a shared power-steering circuit would require installer assessment rather than automatic approval.
Result
The intended outcome is a configuration checklist covering hydraulic compatibility, mechanical fitment, control voltage, accessory scope and required documentation. Purchase approval would remain subject to current drawings, agreed order specifications and installation review; no completed-project performance is claimed.
4x4 Hydraulic Winch Questions on Controls, Fitment and Ordering
Does this winch deliver 10,000 lb pull on every rope layer?
No. The supplied data lists 10,000 lb on the first layer, followed by 7,969 lb, 6,624 lb and 5,667 lb on layers two through four. Use the relevant layer rating when assessing the intended pulling operation.
Is the HWX10000U a 12V electric winch?
No. This 4x4 hydraulic winch uses hydraulic power for pulling. DC 12V or 24V refers to the optional electric valve control circuit, not the winch drive motor.
Can it run from an existing power-steering pump?
The original product information lists this as a possible drive arrangement. Compatibility must be checked against available flow, pressure, circuit design and steering requirements. Do not connect the winch to a steering circuit without vehicle-specific installation approval.
What is the difference between HWX10000A and HWX10000U?
The supplied table lists different heights and net weights: HWX10000A is 217 mm high and 41.3 kg, while HWX10000U is 270 mm high and 41.1 kg. The information provided does not establish all configuration differences; confirm the selected version and drawing before ordering.
What OEM details, MOQ and lead time should buyers confirm?
Irun Winches accepts OEM orders. Buyers should submit branding, labeling and packing requirements alongside quantity and the selected control configuration. MOQ, lead time, sample availability and any development charges require quotation-stage confirmation.
What documents and maintenance information should be requested?
Request the current installation drawing, operating manual, hydraulic requirements and maintenance instructions. The original listing states CE Certificate; confirm the applicable documents and model coverage. Maintenance guidance should address the rope, brake, clutch, mounting fasteners and hydraulic connections.
Can this winch be used to lift or suspend a load?
No. The supplied feature list explicitly excludes lifting use. This product is intended for pulling and recovery applications and must not be used as a lifting device.
About Irun Winch and Its Hydraulic Winch Manufacturing Capability
Established in 1997, Zhejiang Jinhua Runye Tech. Co., Ltd. (Irun Winch) specializes in the research, development and manufacture of vehicle winches and off-road accessories. Its product range includes hydraulic winches for vehicle recovery, towing and engineering applications, alongside electric and industrial winches. The company's production base includes precision machining equipment, comprehensive winch test systems and motor testing equipment to support product development and quality control. For buyers sourcing the HWX10000U hydraulic recovery winch, Irun Winch provides OEM service, with model-specific configuration and customization requirements subject to order review.
Information Needed to Specify an HWX10000U Winch Order Accurately
For product and OEM inquiries, the following information helps define the quotation and installation review:
- Required quantity and the vehicle or recovery application.
- Target pulling conditions, available mounting space and any installation drawings.
- Available hydraulic flow, pressure and the proposed pump or circuit arrangement.
- DC 12V or 24V valve requirement, remote control preference and rope tensioner requirement.
- OEM logo files, label text and packaging requirements, where applicable.
- Required delivery date, sample request and technical or compliance documents needed for review.
Irun Winches can use the submitted requirements to review the requested order configuration. The quotation should confirm included components, approved OEM scope, MOQ, lead time and any sample terms before purchase.
