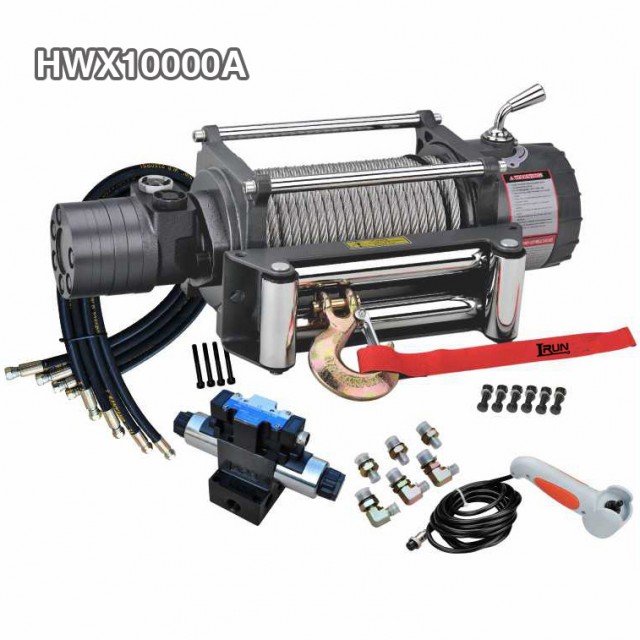

Item No.HWX10000A

10000 lbs Hydarulic Winch
Features:

1.Full steel reducer gear

2.Patent two stage planetar gear reducer

3.Patent clutch and speed shift structure

4.Clutch and two gear actions auto engagement

5.Automatci screw cone braking action

6.Low oil flow stable working motor

7.Vehicle’s existing steering power pump drive

8.DC 12V or 24V electrial vavle control optional

9.Wire remote control

10.Wireless remote control available

11.SWR tensioner available

12.Can not use it working as lift

HWX10000A

SPECIFICATION
Rated line pull	10000 lbs (4536kgs)
Motor: permanent magnet	65ml/r
Oil Flow	5~45L/min
Pressure	10Mpa
Gear reduction ratio	28:1
Cable (Dia.× L)	Ø3/8 “×85.3 ‘ (Ø9.2mm×26m)
Drum size (Dia.× L)	Ø2.48″×8. 8″ (Ø63mm×223mm)
Mounting bolt pattern	10 “×4.5 ” (254mm×114.3mm) 4-M12

Line pull lbs (kgs)	Pressure Mpa(Psi)	Flow G/min (L/min)	Line speed ft/min(m/min)
0	2.0(290.1)	1.3(5)	2.0 (0.6)
4000(1814)	3.8(551.1)	2.6(10)	3.6(1.1)
6000(2722)	7.2(1044.2)	5.3(20)	7.5(2.3)
8000(3629)	8.6(1247.3)	9.2(35)	13.1(4.0)
10000(4536)	10.0(1450.3)	11.9(45)	17.4(5.3)

Layer of cable	Rated line pull lbs(kgs)	Total rope on drum ft (m)
1	10000(4536)	17.4(5.3)
2	7969(3615)	39.4(12.0)
3	6624(3005)	65.0(19.8)
4	5667(2571)	85.3(26.0)

ITEM	HWX10000A	HWX10000U
Overall dimensions	21.7″×6.9″×8.5″	21.7″×6.9″×10.6″
(L×W×H)	550mm×174mm×217mm	550mm×174mm×270mm
Net weight (Ibs)	91.0	91.0
(kgs)	41.3	41.1

Overall Dimensions 21.6″ x 6.3″ x 10.6″
(L x W x H) 550mm x 160mm x 217mm

Net Weight 41.1 KGS
