12V or 24V Electric Recovery Heavy Duty Winches 10000lbs
The EWN10000S heavy duty winch combines a 10,000 lb first-layer pulling capacity, automatic screw-cone braking and a tie-bar-mounted control box for vehicle recovery installations matched to its electrical and mounting requirements.
- Drive options: DC 12V or 24V configurations with separate published speed, current and motor power values.
- Transmission: A three-stage planetary reducer with a listed 332:1 reduction ratio and a free-spooling clutch.
- Listed equipment: Control box, wire rope with hook and roller fairlead; confirm the final supply list in the quotation.
- S-version fitment: Listed dimensions of 563 × 206 × 299 mm, net weight of 58.7 kg and a 254 × 114.3 mm mounting pattern with four M12 positions.
- OEM quotation: Irun Winch accepts OEM orders; provide voltage, quantity, accessory requirements and any branding or packing requests.
- Description

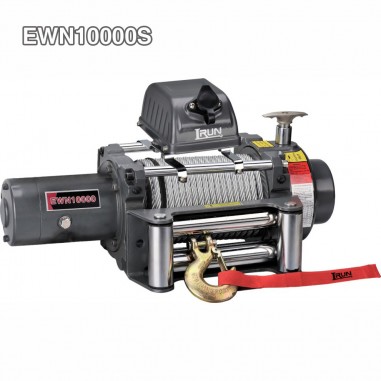

Heavy Duty Winch EWN10000S with Tie Bar Controls and Auto Braking
The EWN10000S is an electric recovery heavy duty winch rated at 10,000 lb (4,536 kg) on the first rope layer. The listed S-version arrangement places the control box on the winch tie bar and includes wire rope with a hook and a roller fairlead. DC 12V and 24V configurations are available for voltage-specific installation review.
- Rated first-layer pull: 10,000 lb (4,536 kg).
- Transmission ratio: 332:1.
- Operating features: Free-spooling clutch and automatic screw-cone braking.
Selection should consider the pulling task, working rope layer, electrical supply and supporting structure. The title rating does not establish suitability for every off-road vehicle or engineering application.
S-Version Installation and Control-Box Clearance
This page focuses on EWN10000S. Its listed height is 299 mm, compared with 246 mm for EWN10000U, so the S-version drawing should be used when checking upper clearance and access around the controls.
- Control-box space: Review clearance above and around the tie-bar-mounted housing.
- Operator access: Keep the clutch and relevant service points accessible.
- Mounting interface: Check the listed 254 × 114.3 mm pattern and four M12 positions.
- Rope path: Review fairlead position and the intended line routing.
The U and S model references are both retained in the original comparison table. They should not be treated as interchangeable installation envelopes.
Planetary Reducer, Clutch and Automatic Brake
Three-Stage Planetary Reduction
The feature list describes a patented three-stage planetary reducer. The listed 332:1 ratio provides a specific transmission reference for comparing configurations.
- Technical documentation: Confirm the reducer specification for the ordered model.
- Patent reference: Request the applicable details if required for procurement review.
- Service requirements: Obtain the maintenance and lubrication instructions.
No measured service-life improvement or transmission efficiency comparison is supplied. The original comparative claims are therefore not used as quantified product advantages.
Free-Spooling Clutch and Screw-Cone Braking
The EWN10000S lists a free-spooling clutch and automatic screw-cone braking. These mechanisms should be assessed alongside the operating instructions rather than treated as a complete statement of permitted use.
- Clutch procedure: Confirm engagement instructions and restrictions.
- Brake inspection: Review operating checks and maintenance requirements.
- Workload limits: Request permitted operating duration and cooling instructions.
The supplied data does not establish lifting approval, continuous-duty capability or unrestricted load-holding use.
Product Specifications
The original specification table is retained without changes to its data. The feature list states a series-wound motor, while the table labels the motor as permanent magnet. Irun Winch should confirm the actual motor type for the selected voltage before technical approval.
| SPECIFICATION | |
| Rated line pull | 10000 lbs (4536 kgs) |
| Motor: permanent magnet |
12V:Input: 4.0kW / 5.3hp;Output: 1.9 kW /2.5hp
24V:Input: 4.9kW /6.6hp;Output: 2.4 kW /3.2hp |
| Gear reduction ratio | 332:1 |
| Cable (Dia.× L) | Ø3/8″×85.3 ‘ (Ø9.2mm×26m) |
| Drum size (Dia.× L) | Ø2.8 “×8. 6” (Ø72mm×219mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3mm) 4-M12 |
The metric and imperial rope specifications are preserved as supplied. Confirm the nominal rope diameter, end connection and replacement specification in the approved technical sheet.
First-Layer Electrical Performance and Rope Capacity
The original table contains two independent data groups. The left side lists first-layer speed and current, while the right side lists pulling capacity and cumulative rope storage by layer. Side-by-side entries do not describe a single combined operating condition.
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
|
Line Pull Ibs (kgs) |
Line Speed Ft/min (m/min) |
Current A |
Layer of cable |
Rated line pull lbs(kgs) |
Total Rope On Drum ft (m) |
||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 10000(4536) | 18.4(5.6) | |
| 0 | 15.7(4.8) | 14.8(4.5) | 80 | 40 | 2 | 8000(3629) | 41.3(12.6) |
| 3000(1361) | 9.2(2.8) | 9.5(2.9) | 160 | 70 | 3 | 6700(3039) | 65.6(20.0) |
| 6000(2722) | 6.6(2.0) | 7.2(2.2) | 225 | 100 | 4 | 5747(2607) | 85.3(26.0) |
| 8000(3629) | 5.6(1.7) | 6.1(1.85) | 300 | 120 | |||
| 10000(4536) | 4.6(1.4) | 5.4(1.65) | 330 | 206 | |||
Compare Loaded Speed Rather Than No-Load Speed Alone
The listed no-load speed is 4.8 m/min for 12V and 4.5 m/min for 24V. At the 10,000 lb first-layer point, the table instead lists 1.4 m/min at 330 A for 12V and 1.65 m/min at 206 A for 24V. This distinction makes the intended operating load important when comparing drive versions.
- Voltage compatibility: Match the ordered version to the intended electrical supply.
- Installation requirements: Obtain battery, cabling, connection and protection specifications.
- Operating limits: Confirm permitted run times and cooling intervals.
The current values are published operating points, not a complete electrical design specification or a continuous-duty rating.
Account for Capacity Across Rope Layers
The listed pull decreases from 10,000 lb on the first layer to 5,747 lb on the fourth. Cumulative rope storage reaches 26.0 m on the fourth layer.
Use the capacity for the intended working layer and follow the operating manual's rope-handling and retained-wrap requirements. Do not apply the first-layer rating to every drum position.
EWN10000U and EWN10000S Dimensions
The original comparison table is retained to distinguish the two versions. This page uses EWN10000S as the order reference, with listed dimensions of 563 × 206 × 299 mm and a net weight of 58.7 kg.
| ITEM | EWN10000U | EWN10000S | |
| Overall dimensions |
22.2″×8.1″×9.7″
563mm×206mm×246mm |
22.2″×8.1″×11.8″
563mm×206mm×299mm |
|
| (L×W×H) | |||
| Net weight (Ibs) |
128.5
58.3 |
129.4
58.7 |
|
| (kgs) |
Confirm the approved S-version drawing for the selected voltage and control arrangement. Mounting structure, fastener requirements and installation clearances need review beyond the listed bolt spacing.
Supplied Equipment and Optional Accessories
The original product description lists a tie-bar control box, wire rope with hook and roller fairlead. Wireless remote control and a steel wire rope tensioner are described as available options.
- Listed equipment: Control box, wire rope, hook and roller fairlead.
- Optional control: Wireless remote control, subject to configuration confirmation.
- Optional accessory: Steel wire rope tensioner.
The quotation should identify included items, accessory quantities and the supplied switch arrangement. Options should not be assumed to form part of the standard package.
OEM Requirements and Export Supply
Irun Winch accepts OEM orders for this product. The required voltage and equipment package should be defined before reviewing branding, packaging or technical changes.
- Branding requests: Provide logo files, marking locations and identification label requirements for review.
- Packaging requests: Specify carton artwork, labels and export packing instructions.
- Technical requests: Submit proposed rope, mounting or control changes with supporting drawings.
The supplied information does not establish standard custom colors, alternative gear materials or unrestricted structural modifications. Irun Winch should confirm available options, sample requirements and any additional development scope.
Listed supply details include China as the place of origin, export carton packaging and ocean or air transportation. A CE certificate is listed; request documentation for the ordered model and configuration. MOQ, production lead time and sample terms require quotation-specific confirmation.
Applications and Equipment Buyer Fit
The EWN10000S can be evaluated for off-road and vehicle recovery equipment where the confirmed pulling capacity, electrical demand and S-version installation envelope match the project.
- Vehicle equipment installers: Review mounting structure, rope routing and control access.
- Recovery equipment distributors: Define voltage-specific stock configurations and accessory packages.
- OEM vehicle builders: Confirm drawings, electrical requirements and documentation before design approval.
Buyers comparing other capacities can review the heavy duty winches range. A heavy duty designation does not replace model-specific workload or installation checks.
Typical Installation Review for a Vehicle Equipment Builder
This illustrative scenario describes a procurement review, not a completed customer project. A vehicle equipment builder is evaluating EWN10000S for an installation with limited clearance above the proposed winch mounting plate.
Buyer Requirement: The builder needs to distinguish the S-version envelope from the U version, select the correct drive voltage and identify the supplied recovery equipment. The purchasing team also requires confirmation of the motor type because the original feature list and parameter table differ.
Solution: Irun Winch would review the mounting layout, available electrical supply, quantity and accessory requirements. The configuration review would use the S-version drawing, confirm the motor specification and identify wireless control or a rope tensioner separately. Any OEM labeling or packaging request would be recorded in the order scope.
Result: The intended outcome is an agreed configuration and installation reference before fabrication and purchasing. This example does not claim a delivered installation, measured service-life improvement or verified recovery result.
Heavy Duty Winch Questions for Buyers
Does EWN10000S provide 10,000 lb pull on every rope layer?
No. The supplied table lists 10,000 lb on the first layer, 8,000 lb on the second, 6,700 lb on the third and 5,747 lb on the fourth.
What is the dimensional difference between U and S?
Both versions list a length of 563 mm and width of 206 mm. The U version lists a height of 246 mm, while the S version lists 299 mm.
Which motor type is supplied?
The feature list states series-wound, while the original specification table states permanent magnet. Request confirmation for the selected voltage and model before approval.
Is the 24V version faster at every operating point?
No. The listed 12V no-load speed is higher, while the listed 24V speed is higher at the loaded points shown. Compare the operating point relevant to the intended task.
What equipment is listed with the winch?
The description lists a tie-bar control box, wire rope with hook and a roller fairlead. Wireless remote control and a steel wire rope tensioner are listed as available options.
Can the winch be specified for lifting?
Lifting approval is not established by the supplied information. This page describes an electric recovery product, not a certified lifting hoist.
What documents should be requested?
Request the approved drawing, confirmed motor specification, operating manual, wiring diagram and applicable CE documents for the ordered configuration.
What are the MOQ, lead time and sample terms?
These are not provided in the supplied description. Irun Winch should confirm them for the selected voltage, quantity, accessories and OEM requirements.
About Irun Winch
Zhejiang Jinhua Runye Tech. Co., Ltd. (Irun Winch) has developed and manufactured vehicle winches and off-road accessories since 1997. Its electric recovery product range is supported by precision machining resources, motor testing equipment and comprehensive winch test systems. Irun Winch provides OEM service and supplies customers in more than 50 countries and regions.
Information for an EWN10000S Quotation
The following details help Irun Winch prepare a configuration-specific quotation:
- Required quantity and DC 12V or DC 24V drive.
- Vehicle application, mounting layout and available clearance.
- Wireless control, rope tensioner and supplied accessory requirements.
- OEM logo, labeling or export carton requests, if applicable.
- Delivery destination and any sample or technical documentation requirements.
Order confirmation should identify the motor type, approved S-version drawing, supplied equipment, OEM scope, MOQ and lead time.
