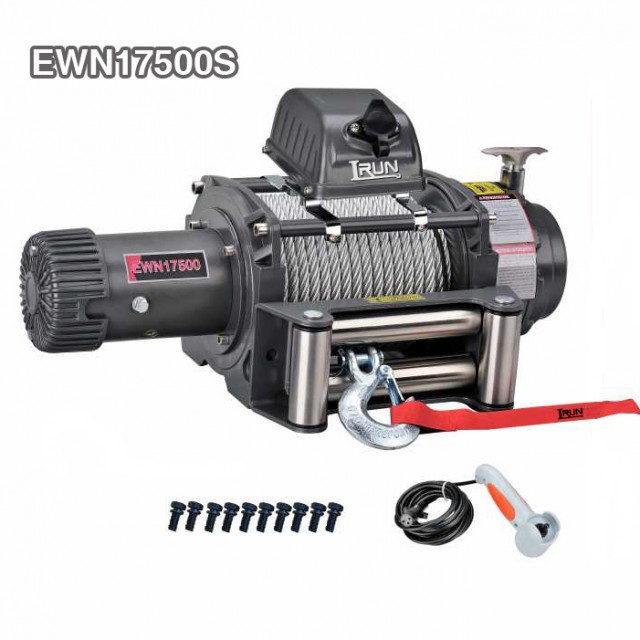

17500 lbs Electric Winch Item No.EWN17500S is a winch capactiy of up to 10000 lbs.

The standard equipment accessories for EWN17500S are control box, wire rope and roller failread.



This winch is equipped with a Heavy duty automatic screw cone braking  action for a safe operation,

and a  patent hardened heavy duty full steel three stage planetar gear reducer provides high efficient transmisson.

EWN17500 as the classic repersentive of Heavy Duty Winch EWN Series be of a more durable working life, faster line speed and better efficient transmission.They’re widely applied for severe offroad or engineering use.

Features:

1. Full steel reducer gear

2. Free free spooling clutch

3.  Automatic screw cone braking action

4.  Series wound motor.

5. Patent design tree stage planetary gear reducer.

6. Sepcially designed shape for convenience of installation and good looking.

7. Remote control through control box and switch

8. Wireless remote control available

9.DC 12V or DC 24V Power drive optional

10. Heavy duty design

11. Standard 4-way roller fairlead

12.  Clevis pinned/latched hook



Rated line pull 17500 lbs(7938 kgs)

Motor: permanent magnet 12V:Input: 5.4kW / 7.2hp;Output: 2.9 kW /3.9hp

24V:Input: 6.0kW /8.0hp;Output: 3.1 kW /4.1hp

Gear reduction ratio 430:1

Cable (Dia.× L) Ø15/32 “×87 ‘ (Ø12mm×26.5m)

Drum size (Dia.× L) Ø3.5 “×8. 6” (Ø89mm×219mm)

Mounting bolt pattern 10 “×4.5 ” (254mm×114.3mm) /10 “×6.5 ” (254mm×165.1mm) 8-M12

Overall dimensions (L×W×H) 24.4″×8.4″×12.6″(620mm×214mm×321mm)

Net weight Ibs (kgs) 148.4(67.3)

EWN17500

SPECIFICATION
Rated line pull	17500 lbs (7938 kgs)
Motor: permanent magnet	12V:Input: 5.4kW / 7.2hp;Output: 2.9 kW /3.9hp 24V:Input: 6.0kW /8.0hp;Output: 3.1 kW /4.1hp
Gear reduction ratio	430:1
Cable (Dia.× L)	Ø15/32 “×87 ‘ (Ø12mm×26.5m)
Drum size (Dia.× L)	Ø3.5 “×8. 6” (Ø89mm×219mm)
Mounting bolt pattern	10 “×4.5 ” (254mm×114.3mm) 10 “×6.5 ” (254mm×165.1mm) 8-M12

Pull Speed Amperes Volts First layer					Line Pull And Rope Capacity In Layer
Line Pull Ibs (kgs)	Line Speed Ft/min (m/min)		Current A		Layer of cable	Rated line pull lbs(kgs)	Total Rope On Drum ft (m)
	12V DC	24V DC	12V DC	24V DC	1	17500(7938)	18.0(6.0)
0	19.7(6.0)	13.8(4.4)	100	40	2	14140(6414)	40.7(13.0)
6000(2722)	7.2(2.2)	6.9(2.1)	220	100	3	11862(5381)	65.9(21.0)
10000(4536)	5.6(1.7)	5.9(1.8)	320	140	4	10217(4634)	86.9(26.5)
12500(5670)	4.9(1.5)	5.2(1.6)	350	180
14000(6350)	4.6(1.4)	4.6(1.4)	380	200
17500(7938)	3.0(0.9)	3.9(1.2)	450	250

ITEM	EWN17500U	EWN17500S
Overall dimensions	24.4″×8.4″×11.4″ 620mm×214mm×290mm	24.4″×8.4″×12.6″ 620mm×214mm×321mm
(L×W×H)
Net weight (Ibs)	147.7 67.0	148.4 67.3
(kgs)

Overall Dimensions 24.4″ x 8.4″ x 12.6″
(L x W x H) 620mm x 214mm x 321mm

Net Weight 67.3 KGS
