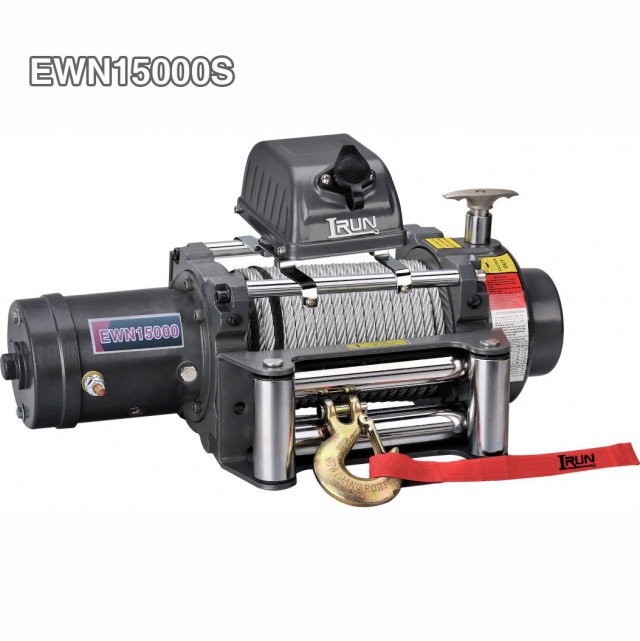

EWN15000S 15000 lb Heavy Duty Truck Winch with Automatic Screw-Cone Brake
The EWN15000S heavy duty truck winch combines a 15,000 lb first-layer pull rating, automatic screw-cone braking and a three-stage planetary reducer for off-road and truck recovery installations requiring model-specific capacity and fitment review.
- - Pulling system: A 446:1 reduction ratio, free-spooling clutch and automatic screw-cone brake.
- - Listed equipment: A tie-bar-mounted control box, roller fairlead and 11 mm × 25.5 m wire rope; confirm the rope end fitting in the order specification.
- - Drive selection: DC 12V or 24V versions with different published electrical performance and overall lengths.
- - Optional controls: Wireless remote control and a steel wire rope tensioner are available for configuration review.
- - OEM quotation: Irun Winch accepts OEM orders; provide voltage, quantity, mounting details and any branding or packaging requirements.
- Description
Heavy Duty Truck Winch EWN15000S for Off Road Recovery Projects
The EWN15000S is an electric heavy duty truck winch rated at 15,000 lb (6,804 kg) on the first rope layer. Its listed equipment includes a control box mounted on the tie bar, a roller fairlead and wire rope. The S-version arrangement should be reviewed against the vehicle's available space, electrical supply and intended recovery workload before ordering.
- - First-layer rated pull: 15,000 lb (6,804 kg).
- - Reduction system: Three-stage planetary reducer with a 446:1 ratio.
- - Mounting interface: 254 × 114.3 mm bolt pattern with four M12 positions.
The rated pull is a rope-layer-specific value, not a vehicle weight limit or a guarantee of suitability for every truck. Selection requires review of the intended pulling conditions and installation requirements.
Heavy Duty Winch Brake and Gear Features for Recovery Operations
Automatic Screw-Cone Brake and Free-Spooling Clutch
The EWN15000S lists automatic screw-cone braking and a free-spooling clutch. Buyers should confirm how these mechanisms operate in the supplied configuration and ensure that the clutch remains accessible after installation.
- - Request the brake operating, inspection and maintenance instructions.
- - Check clutch access within the proposed mounting arrangement.
- - Confirm engagement procedures and restrictions before use.
The brake feature does not establish lifting approval or unrestricted load-holding capability. The supplied information presents this model for recovery use and does not identify it as a certified lifting hoist.
Three-Stage Planetary Reduction
The product description identifies a patented three-stage planetary reducer with a 446:1 reduction ratio. This provides a specific transmission configuration for procurement review, but no verified transmission efficiency percentage is supplied.
- - Confirm the reducer specification for the selected model.
- - Request the patent reference if required by the purchasing documentation.
- - Compare published line speed and current rather than unsupported percentage improvements.
Service life and efficiency comparisons require defined test conditions and a named reference product. They should not be inferred from the reducer description alone.
Tie-Bar Control Box and Supplied Equipment
The listed S-version package places the control box on the tie bar and includes a roller fairlead and wire rope. This arrangement makes upper clearance, rope routing and control access relevant installation checks.
- - Allow space around the tie-bar-mounted control box.
- - Confirm fairlead dimensions and the intended rope path.
- - Identify the supplied rope end fitting and accessory quantities.
The original description contains an unclear reference to the rope end fitting. The quotation should identify the actual fitting rather than relying on that wording.
Heavy Duty Truck Winch Specifications for EWN15000S Installation
The following data applies to the listed EWN15000S configuration. Voltage-specific dimensions are shown separately to support installation planning.
| Model | EWN15000S |
|---|---|
| Rated first-layer line pull | 15,000 lb (6,804 kg) |
| Drive voltage | DC 12V or DC 24V |
| Motor type | Requires confirmation: the supplied feature list and specification table state different motor types |
| 12V motor power | Listed input: 5.4 kW / 7.2 hp; listed output: 2.8 kW / 3.8 hp |
| 24V motor power | Listed input: 6.0 kW / 8.0 hp; listed output: 3.5 kW / 4.7 hp |
| Reducer | Three-stage planetary reducer, described as patented |
| Gear reduction ratio | 446:1 |
| Brake and clutch | Automatic screw-cone brake; free-spooling clutch |
| Wire rope diameter × length | 11 mm × 25.5 m; listed imperial size: 7/16 in × 83.7 ft |
| Drum diameter × length | 88 mm × 217 mm |
| Mounting bolt pattern | 254 × 114.3 mm (10 × 4.5 in); 4-M12 |
| 12V overall dimensions, L × W × H | 593 × 226 × 316 mm (23.3 × 8.9 × 12.4 in) |
| 24V overall dimensions, L × W × H | 576 × 226 × 316 mm (22.7 × 8.9 × 12.4 in) |
| Listed S-version net weight | 74.1 kg (163.3 lb); voltage-specific weight is not separately listed |
| Listed equipment | Tie-bar-mounted control box, roller fairlead and wire rope; rope end fitting requires confirmation |
| Control options | Remote operation through control box and switch; wireless remote control available |
| Additional listed option | Steel wire rope tensioner |
| Materials and finish | Housing material, gear material and finish are not specified in the supplied data |
| Compliance information | CE certificate listed; request applicable model documentation |
| Origin, packaging and transportation | China; export carton; ocean or air transportation |
| MOQ, lead time and sample terms | Confirm for the selected configuration, quantity and OEM scope |
A matching bolt pattern does not by itself approve an installation. The responsible installer should confirm mounting structure, fastener specifications, access and clearance using the current model drawing.
Heavy Duty Winch Electrical Data for Comparing 12V and 24V Drive
The first-layer performance table lists separate speed and current values for the two drive versions. At 15,000 lb, the published 12V point is 1.3 m/min at 450 A, while the 24V point is 1.7 m/min at 250 A.
| Line pull lb (kg) | 12V speed ft/min (m/min) | 24V speed ft/min (m/min) | 12V current A | 24V current A |
|---|---|---|---|---|
| 0 (0) | 13.1 (4.0) | 16.1 (4.9) | 90 | 48 |
| 8,000 (3,629) | 6.6 (2.0) | 7.2 (2.2) | 270 | 140 |
| 10,000 (4,536) | 4.9 (1.5) | 6.6 (2.0) | 320 | 180 |
| 12,000 (5,443) | 4.6 (1.4) | 5.9 (1.8) | 380 | 200 |
| 15,000 (6,804) | 4.3 (1.3) | 5.6 (1.7) | 450 | 250 |
- - Match the ordered drive version to the vehicle's electrical system.
- - Review supply, cabling and protection requirements with the installer.
- - Confirm permitted operating duration and cooling intervals separately.
These published points do not establish continuous-duty capability. They also do not replace the manufacturer's electrical installation instructions or indicate performance under every supply condition.
Heavy Duty Winch Rated Pull and Rope Storage Across Drum Layers
The EWN15000S has a listed first-layer pull of 15,000 lb and a fourth-layer pull of 8,720 lb. Buyers specifying a heavy duty winch for truck recovery should evaluate the applicable layer capacity rather than applying the headline rating throughout the pull.
| Rope layer | Rated line pull lb (kg) | Cumulative rope on drum ft (m) |
|---|---|---|
| 1 | 15,000 (6,804) | 19.7 (6.0) |
| 2 | 12,000 (5,443) | 42.7 (13.0) |
| 3 | 10,100 (4,581) | 68.9 (21.0) |
| 4 | 8,720 (3,955) | 83.7 (25.5) |
Rope storage is cumulative. Minimum retained wraps, rope inspection and permitted rigging arrangements must follow the model's operating instructions.
Heavy Duty Truck Winch Options and OEM Configuration Requirements
Irun Winch accepts OEM orders for the EWN15000S. Published drive and accessory options should be distinguished from requests that require additional confirmation.
- - Listed selections: DC 12V or DC 24V drive, optional wireless control and optional steel wire rope tensioner.
- - Branding requests for review: Logo marking, identification labels, carton artwork and packing instructions.
- - Technical requests for assessment: Alternative rope specifications, control arrangements or mounting modifications.
The supplied information does not establish standard options for custom colors, synthetic rope or structural redesign. Irun Winch should confirm feasibility, sample requirements and any development scope before approving changes.
Applications and Buyer Fit
This model can be evaluated for truck and off-road recovery equipment where the stated capacity, electrical demand and S-version installation envelope match the project requirements.
- - Recovery vehicle builders reviewing electrical supply and mounting structure.
- - Equipment distributors defining voltage-specific configurations and accessory scope.
- - Fleet buyers assessing recovery requirements across different vehicle platforms.
Buyers comparing heavy duty truck winches can review the heavy duty winches range for other capacities and configurations. This model is not presented as a universal fit for every truck or engineering task.
Heavy Duty Truck Winch Typical Vehicle Builder Procurement Review
This illustrative scenario describes a configuration review, not a completed customer project. A recovery vehicle builder is evaluating the EWN15000S for a 24V platform with limited clearance above the proposed winch position.
Buyer Requirement
The builder needs a reviewed pulling capacity, an installation drawing for the S version and a clear list of supplied recovery components. The purchasing team also wants to identify wireless control and a rope tensioner separately from the listed equipment.
Solution
In this scenario, Irun Winch would review the vehicle information, mounting layout, quantity and accessory requests. The proposed configuration would use the published 24V dimensions of 576 × 226 × 316 mm, the 254 × 114.3 mm mounting pattern and the applicable electrical performance table. Motor type and the rope end fitting would need clarification before specification approval.
Result
The intended outcome is an agreed configuration and drawing set before fabrication and order placement. This example does not claim a delivered installation, measured service-life improvement or verified recovery result.
Heavy Duty Truck Winch EWN15000S Questions for Equipment Buyers
Capacity and Installation
Does this heavy duty truck winch provide 15,000 lb pull on every layer?
No. The listed capacities are 15,000 lb on the first layer, 12,000 lb on the second, 10,100 lb on the third and 8,720 lb on the fourth.
Are the 12V and 24V versions the same size?
No. The S-version length is listed as 593 mm for 12V and 576 mm for 24V. Both list a width of 226 mm and a height of 316 mm.
Which motor type does the EWN15000S use?
The supplied information is inconsistent: the feature list states series-wound, while the specification table states permanent magnet. Request confirmation for the ordered voltage and model before approval.
What mounting details should be checked?
The listed pattern is 254 × 114.3 mm with four M12 positions. Confirm the approved drawing, mounting structure, fasteners, control-box clearance and clutch access.
Can this product be specified for lifting?
Lifting approval is not established by the supplied data. This page describes a recovery winch, not a certified hoist for lifting or suspending loads.
Accessories and Order Terms
What equipment is listed with the winch?
The original description lists a tie-bar-mounted control box, roller fairlead and wire rope. Confirm accessory quantities and the rope end fitting in the quotation.
Are wireless control and the wire rope tensioner standard?
They are described as available options. Their inclusion should be confirmed for the selected order.
Is CE documentation available?
The product information lists a CE certificate. Request the applicable documents and confirm their coverage for the selected model and configuration.
Can Irun Winch review private-label requirements?
Irun Winch accepts OEM orders. Submit logo files, marking locations, label details and packaging artwork for scope confirmation.
What are the MOQ, lead time and sample terms?
These are not specified in the supplied product data. Request terms for the required voltage, quantity, accessories and OEM scope.
About Irun Winch and Its Heavy Duty Recovery Equipment Production
Founded in 1997, Zhejiang Jinhua Runye Tech. Co., Ltd. (Irun Winch) manufactures vehicle winches and off-road accessories for recovery, towing and commercial equipment sourcing. Its production resources include precision machining equipment, comprehensive winch test systems and motor testing equipment. Irun Winch offers electric, hydraulic and industrial winch models and provides OEM service to customers in more than 50 countries and regions.
Request an EWN15000S Heavy Duty Winch Quote with Vehicle Details
The following details help Irun Winch review the required configuration:
- - Target quantity and required DC 12V or DC 24V version.
- - Vehicle platform, intended recovery task and mounting layout.
- - Wireless control, rope tensioner and supplied accessory requirements.
- - OEM logo, labeling or packaging details, if applicable.
- - Delivery destination and any sample or technical documentation requests.
Order approval should confirm motor type, model-specific dimensions, rope end fitting, accessory scope, MOQ and lead time. Include drawings when the installation requires a fitment review.
