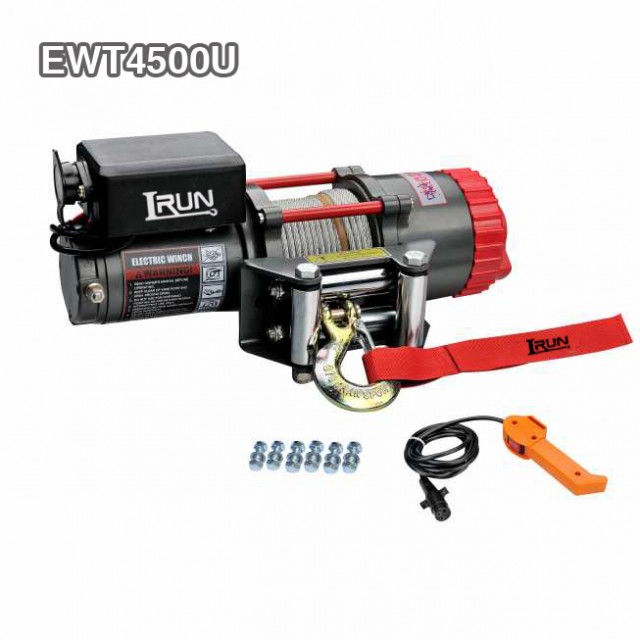

EWT4500U 4500 lb Electric UTV Winch with Motor-Mounted Control Box
The EWT4500U UTV winch combines a 4,500 lb first-layer pulling capacity, a three-stage planetary steel reducer and a motor-mounted control box for compatible vehicle recovery installations.
- Motor and transmission: Permanent magnet motor with a listed 166:1 reduction ratio and DC 12V or 24V drive options.
- Operating features: Free-spooling clutch, patented clutch structure and automatic screw-cone braking.
- Control arrangement: The control box mounts on the winch motor; confirm the supplied switch configuration and wiring.
- Rope and mounting: Listed with 6.0 mm × 14.5 m wire rope and a 168 × 76.2 mm mounting pattern with four M8 positions.
- OEM quotation: Irun Winch accepts OEM orders; provide voltage, quantity, installation information and any labeling or packing requests.
- Description
UTV Winch EWT4500U with Motor Mounted Controls and Steel Reducer
The EWT4500U is an electric UTV winch rated at 4,500 lb (2,041 kg) on the first rope layer. It combines a permanent magnet motor, a three-stage planetary steel reducer and automatic screw-cone braking. The U-version feature list places the control box on the winch motor, making clearance around the motor and control housing an important installation check.
- First-layer rated pull: 4,500 lb (2,041 kg).
- Drive options: DC 12V or DC 24V.
- Listed reduction ratio: 166:1.
Selection should consider the pulling task, vehicle electrical supply, working rope layer and mounting structure. The capacity rating does not establish universal UTV compatibility.
Motor-Mounted Control Box and Operator Access
The control box is listed as mounted on the winch motor. This arrangement needs to be reviewed together with the installed winch height, electrical connections and access to the free-spooling clutch.
- Upper clearance: Allow space for the control housing and connections.
- Operator controls: Confirm the required switch type and operating position.
- Clutch access: Keep the mechanism accessible after installation.
- Wiring requirements: Request the diagram for the ordered configuration.
The original feature list describes direct high-current switch control and an ATV handlebar switch. Irun Winch should identify how these descriptions apply to the selected package rather than treating every control arrangement as simultaneously supplied.
Steel Planetary Reducer and Clutch Structure
The feature list identifies a three-stage planetary steel reducer and a patented clutch structure. These are separate product descriptions: the patent reference applies to the clutch as stated, not automatically to the reducer.
- Transmission reference: Listed 166:1 reduction ratio.
- Clutch documentation: Request the operating instructions and patent reference if required.
- Maintenance information: Confirm lubrication, inspection and service requirements.
No steel grade, measured transmission efficiency or comparative service-life result is provided. These should not be inferred from the listed gear construction.
Automatic Screw-Cone Braking
Automatic screw-cone braking is a listed feature of the EWT4500U. Buyers should review its operation and maintenance requirements before specifying the winch for an installation.
- Operating procedure: Confirm the permitted recovery methods and clutch engagement restrictions.
- Brake inspection: Follow the model-specific inspection instructions.
- Workload limits: Request permitted run times and cooling requirements.
The automatic brake does not establish lifting approval, unrestricted load holding or continuous-duty capability. None of those capabilities is confirmed by the supplied data.
Product Specifications
The original specification table is retained without changes to its data. Review the motor power and electrical requirements for the selected voltage configuration.
| SPECIFICATION | |
| Rated line pull | 4500 lbs (2041 kgs) |
| Motor: permanent magnet |
12V:Input: 2.5kW / 3.4hp; Output: 1.1 kW / 1.4hp
24V:Input: 2.6kW / 3.5hp; Output: 1.2kW / 1.5hp |
| Gear reduction ratio | 166:1 |
| Cable (Dia.× L) | Ø 15/64″×47.6′ (Ø6.0mm×14.5m) |
| Drum size (Dia.× L) | Ø 2.0″×4.9″ (Ø50.4mm×125 mm) |
| Mounting bolt pattern | 6.6″×3.0″ (168mm×76.2 mm) 4-M8 |
Confirm the current technical sheet, including the stated motor power units and rope specification, before using the entries for engineering calculations or replacement component sourcing.
First-Layer Performance and Rope-Layer Capacity
The original table contains two independent data groups. The left side lists first-layer electrical performance, while the right side lists pulling capacity and cumulative rope storage by layer. Entries placed beside each other are not one combined operating condition.
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
|
Line Pull Ibs (kgs) |
Line Speed Ft/min (m/min) |
Current A |
Layer of cable |
Rated line pull lbs(kgs) |
Total Rope On Drum ft (m) |
||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 4500(2041) | 10.8(3.3) | |
| 0 | 12.5(3.8) | 14.4(4.4) | 28 | 14 | 2 | 3833(1740) | 24.0(7.3) |
| 1000(454) | 8.5(2.6) | 11.1(3.4) | 140 | 50 | 3 | 3338(1515) | 39.4(12.0) |
| 2500(1135) | 6.2(1.9) | 8.8(2.7) | 170 | 90 | 4 | 2957(1342) | 47.6(14.5) |
| 4500(2041) | 5.2(1.6) | 4.6(1.4) | 220 | 110 | |||
Compare Voltage Versions at the Intended Load
The listed 24V speed is higher at no load and at the intermediate pulling points shown. At the rated 4,500 lb point, however, the table lists 1.6 m/min for 12V and 1.4 m/min for 24V. Buyers should compare the relevant operating point rather than assuming that one voltage is faster throughout the range.
- 12V rated-pull point: Listed at 1.6 m/min and 220 A.
- 24V rated-pull point: Listed at 1.4 m/min and 110 A.
- Electrical review: Confirm battery, cabling, connection and protection requirements.
The published values are operating references, not a substitute for the installation instructions or a guarantee of performance under every supply condition.
Account for Rope-Layer Capacity
The listed rated pull decreases from 4,500 lb on the first layer to 2,957 lb on the fourth. Cumulative rope storage reaches 14.5 m on the fourth layer.
Use the capacity applicable to the working rope position. Minimum retained wraps and permitted rope handling must follow the model instructions.
EWT4500U Dimensions and Version Comparison
The original comparison table distinguishes D, A and U versions. It lists a U-version net weight of 14.7 kg and a greater height than the D and A models.
| ITEM | EWT4500D | EWT4500A | EWT4500U |
| Overall dimensions |
16.2″×4.5″×4.8″
412mm×115mm×123 mm |
16.2″×4.5″×4.8″
412mm×115mm×123 mm |
16.3″×4.5″×6.6″
413mm×125mm×168mm |
| (L×W×H) | |||
|
Net weight (Ibs) (kgs) |
29.8
13.5 |
32.4
14.7 |
32.4
14.7 |
The original U-version metric dimensions are 413 × 125 × 168 mm, while the imperial width is listed as 4.5 in. These width entries require reconciliation against the approved drawing before fitment approval.
- Mounting geometry: Confirm the 168 × 76.2 mm pattern and four M8 positions.
- Installation envelope: Use the current U-version drawing, including the motor-mounted control box.
- Supporting structure: Review the mounting support and fastener requirements.
A matching bolt pattern alone does not approve the installation or establish sufficient control-box clearance.
OEM Configuration and Export Supply
Irun Winch accepts OEM orders for this model. Voltage and control requirements should be defined before reviewing branding, packaging or technical modifications.
- Configuration inputs: Required voltage, switch arrangement, quantity and installation details.
- Branding requests: Logo files, marking locations and product label requirements for review.
- Packaging requests: Carton artwork, identification labels and export packing instructions.
- Technical changes: Drawings or specifications for proposed rope, mounting or control modifications.
The supplied information does not establish standard custom colors, alternative materials or unrestricted structural changes. Irun Winch should confirm the available scope and any drawing, sample or development requirements.
Listed supply details include export carton packaging, ocean or air transportation, China as the place of origin and a CE certificate. Request the applicable model documentation. MOQ, production lead time and sample terms require quotation-specific confirmation.
Applications and Equipment Buyer Fit
The EWT4500U can be evaluated for UTV recovery installations where the pulling requirement, electrical supply and motor-mounted control arrangement match the confirmed specification.
- UTV equipment installers: Review upper clearance, mounting support and operator access.
- Off-road distributors: Define voltage-specific packages and included control components.
- OEM vehicle builders: Confirm drawings, wiring requirements and documentation before design approval.
The supplied data does not establish universal vehicle fitment, a waterproof rating or lifting approval. These capabilities should not be inferred from the product name or photograph.
Typical Installation Review for a UTV Equipment Builder
This illustrative example describes a procurement review, not a completed customer project. A UTV equipment builder is considering EWT4500U for an installation where space above the motor is limited.
Buyer Requirement: The builder needs a confirmed installation envelope, voltage-specific performance data and an agreed switch configuration. The mounting fabricator also needs to resolve the difference between the listed metric and imperial width.
Solution: Irun Winch would review the vehicle supply, mounting layout, target quantity and control requirements. The review would confirm the U-version drawing, motor-mounted control-box clearance and included electrical components. Any OEM marking or packing request would be identified separately.
Result: The intended outcome is an approved configuration and installation reference before fabrication and purchasing. This example does not claim a completed installation, verified recovery result or measured performance improvement.
UTV Winch Questions for Equipment Buyers
Where is the EWT4500U control box mounted?
The original feature list places the control box on the winch motor. Confirm the complete arrangement and connection clearances in the U-version drawing.
Does the UTV winch use a steel planetary reducer?
Yes. The supplied feature list describes a three-stage planetary steel reducer, with a listed reduction ratio of 166:1.
Is the gear reducer described as patented?
The supplied patent statement applies to the clutch structure. It should not automatically be extended to the reducer.
Does the winch provide 4,500 lb pull on every layer?
No. The listed capacities are 4,500 lb on the first layer, 3,833 lb on the second, 3,338 lb on the third and 2,957 lb on the fourth.
Is the 24V version always faster?
No. At the listed rated-pull point, 12V is shown at 1.6 m/min and 24V at 1.4 m/min. Review the operating point relevant to the intended task.
What dimensions should be used for installation?
The metric table lists 413 × 125 × 168 mm, but the imperial width conflicts. Use the approved U-version drawing before finalizing fitment.
Is wireless remote control included?
Wireless control is not listed in the supplied feature set for this model. Confirm availability rather than assuming it is included or compatible.
What documents and order terms should be confirmed?
Request the approved drawing, wiring information, operating manual and applicable CE documents. Confirm MOQ, lead time and sample terms for the selected configuration.
About Irun Winch
Established in 1997, Zhejiang Jinhua Runye Tech. Co., Ltd. (Irun Winch) develops and manufactures vehicle winches and off-road accessories, including UTV models. Its manufacturing resources include precision machining equipment, motor testing equipment and comprehensive winch test systems. Irun Winch provides OEM service and supplies customers in more than 50 countries and regions.
Information for an EWT4500U Quotation
The following details help Irun Winch define the required configuration:
- Required quantity and DC 12V or DC 24V drive.
- Vehicle application, mounting layout and available space around the motor-mounted control box.
- Required switch arrangement and any additional control requests.
- OEM logo, labeling or export carton requirements, if applicable.
- Delivery destination and any sample or technical documentation requirements.
Order confirmation should identify the approved dimensions, supplied controls, accessory scope, OEM requirements, MOQ and lead time.
