- Description

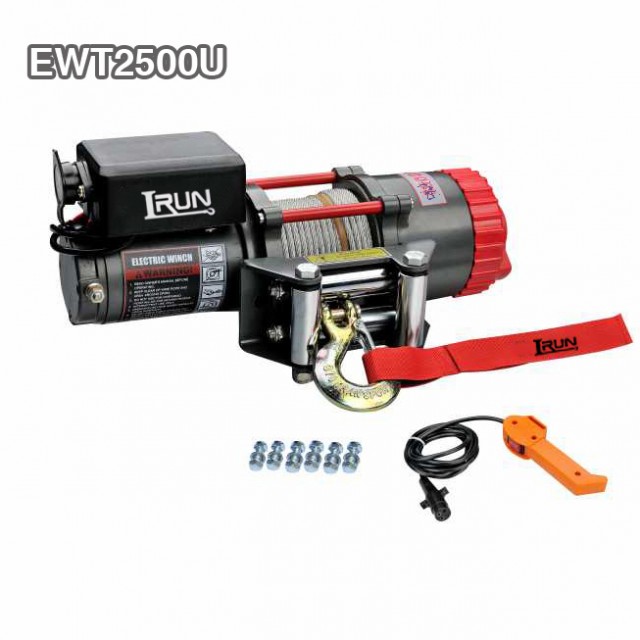

Electric ATV winch 2500lb Item No.EWT2500U
Features:
1. 3-stage planetary steel gear reducer.
2. Control box fixed on winch motor
3. Patent design cam clutch.
4. Free spooling clutch
5. Automatic screw cone braking action
6. High crrunt working switch control directly
7. ATV handlebar switch control
8. DC 12V or DC 24V Power drive optional
9.Remote control through control box and switch.
10.Wireless remote control available.
EWT2500
SPECIFICATION | |
Rated line pull | 2500 lbs (1134 kgs) |
Motor: permanent magnet | 12V:Input: 1.8kW / 2.4hp; Output: 0.8 kW / 1.1hp |
24V:Input: 1.9kW / 2.6hp; Output: 0.9 kW / 1.2hp | |
Gear reduction ratio | 166:1 |
Cable (Dia.× L) | Ø 3/16″×45.9′ (Ø4.8mm×14.0m) |
Drum size (Dia.× L) | Ø 2.0″×3.2″ (Ø50.4mm×82 mm) |
Mounting bolt pattern | 3.13″ (79.5 mm) 2-M8 |
Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
Line Pull
Ibs (kgs) |
Line Speed
Ft/min (m/min) |
Current
A |
Layer
of cable |
Rated line pull
lbs(kgs) |
Total Rope On Drum
ft (m) |
||
12V DC | 24V DC | 12V DC | 24V DC | 1 | 2000(907) | 6.6(2.0) | |
0 | 9.5(2.9) | 9.8(3.0) | 15 | 12 | 2 | 1630(739) | 14.1(4.3) |
500(227) | 8.2(2.5) | 8.9(2.7) | 60 | 40 | 3 | 1380(626) | 22.3(6.8) |
1500(680) | 5.6(1.7) | 7.5(2.3) | 115 | 60 | 4 | 1190(540) | 31.2(9.5) |
2000(907) | 3.6(1.1) | 6.2(1.9) | 145 | 80 | 5 | 1050(476) | 41.0(12.5) |
6 | 940(426) | 49.2(15.0) |
ITEM | EWT2500D | EWT2500A | EWT2500U |
Overall dimensions | 14.3″×4.5″×4.8″ | 14.3″×4.5″×4.8″ | 14.3″×4.5″×6.3″ |
(L×W×H) | 368mm×115mm×123mm | 368mm×115mm×123mm | 372mm×115mm×160mm |
Net weight (Ibs) | 24.7 | 27.1 | 26.9 |
(kgs) | 11.2 | 12.3 | 12.2 |
Overall dimensions: 14.6″x4.5″x6.3″
(LxWxH) 372mmx115mmx160mm
Net Weight: 12.2 kgs
Looking for ideal Powered Winches 2500 Pound Manufacturer & supplier ? We has a wide selection at great prices to help you get creative. All the 2500 Lb Winch For Atv are quality guaranteed. We are China Origin Factory of Waterproof ATV Winches 2500 Lb. If you have any question, please feel free to contact us.
