8000 Pound Electric Winch For 4×4 With Series Wound Motor
Packaging: Export Caton
Brand: OEM order acceptable
Transportation: Ocean,Air
Place of Origin: China
Certificate: CE Certificate
- Description
Item No. EWG8000U 8000 lbs Electric Winch for Suv or Jeep is the poineer product of our Series Wound Motor 4×4 recovery winch. It gains fine repuation from all over the world clients because of its stable quality, fine performance and competitive prices due to our long time insisting on purifying products and control production cost.
Features:
1. Free spooling clutch
2. Automatic screw cone braking action
3. DC 12V or DC 24V Power drive optional
4. Series Wound Motor
5. Remote control through control box and switch
6. Wireless remote control available F type fixed in control box
7. SWR tensioner available
EWG8000
| SPECIFICATION | |
| Rated line pull | 8000 lbs (3629 kgs) |
| Motor: series wound |
12V:Input: 3.8kW / 5.1hp; Output: 2.7kW / 3.6hp
24V:Input: 5.0kW / 6.7hp; Output: 3.0kW /4.0hp |
| Gear reduction ratio | 210:1(12V); 150:1(24V) |
| Cable (Dia.× L) | Ø21/64 “×95 ‘ (Ø8.3mm×29m) |
| Drum size (Dia.× L) | Ø2.48 “×8.9 ” (Ø63mm×227mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
|
Line Pull
Ibs (kgs) |
Line Speed
Ft/min (m/min) |
Current
A |
Layer
of cable |
Rated line pull
lbs(kgs) |
Total Rope On Drum
ft (m) |
||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 8000(3629) | 19.7 (6.0) | |
| 0(0) | 24.0(7.3) | 34.4(10.5) | 80 | 50 | 2 | 6500(2948) | 42.7 (13.0) |
| 2000(907) | 12.5(3.8) | 19.0(5.8) | 150 | 90 | 3 | 5500(2495) | 68.9(21.0) |
| 4000(1814) | 8.9(2.7) | 12.8 (3.9) | 220 | 135 | 4 | 4800(2177) | 95.1(29.0) |
| 6000(2722) | 6.9 (2.1) | 9.8(3.0) | 270 | 170 | |||
| 8000(3629) | 5.6(1.7) | 6.6 (2.0) | 320 | 210 | |||

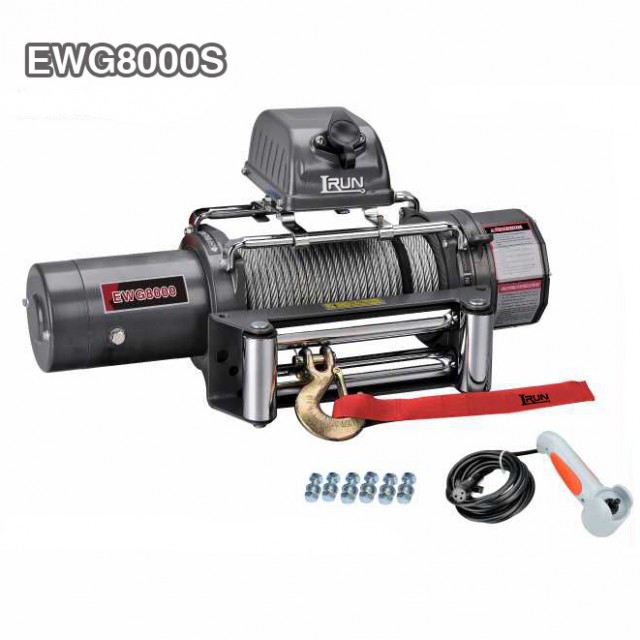

| ITEM | EWG8000U | EWG8000S | EWG8000F |
| Overall dimensions |
22.4″×7.1″×9.6″
570mm×180mm×243mm |
22.4″×7.1″×11.7″
570mm×180mm×297mm |
22.4″×7.1″×10.6″
570mm×180mm×270mm |
| (L×W×H) | |||
| Net weight (Ibs) |
72.5
32.8 |
72.9
33.1 |
73.8
33.5 |
| (kgs) |
Overall Dimensions：22.4″ x 7.1″ x 8.9″
(L x W x H) 570mm x 180mm x 225mm
Net Weight： 32.8 KGS
Looking for ideal 4×4 Winches 8000 Lb Manufacturer & supplier ? We has a wide selection at great prices to help you get creative. All the 4WD Recovery Winches are quality guaranteed. We are China Origin Factory of Electric 4×4 Winch. If you have any question, please feel free to contact us.
