5000lb Electric Winch for Suv With Control Box Tie on Winch Bar
Packaging: Export Caton
Brand: OEM ORDER ACCEPTABLE
Transportation: Ocean,Air
Place of Origin: China
Certificate: CE Certificate
- Description

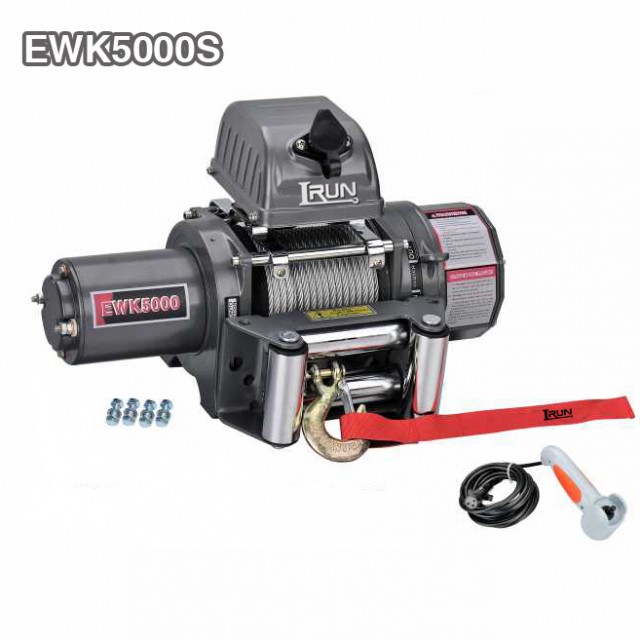

5000 lbs Electric Winch Item No. EWK5000S is idea for Suv or small car. It belongs to our first generation winch product. We design the control box tied on the Winch bar.We insist on effort to purify product to service our customers. Its features is at stable quality, fine performance and attractive price.
Features:
1. Free spooling clutch
2. Automatic screw cone braking action
3. DC 12V or DC 24V Power drive optional
4. Permanent magnet Motor
5. Remote control through control box and switch
6. Wireless remote control available F type fixed in control box
7. SWR tensioner available
EWK5000
| SPECIFICATION | |
| Rated line pull | 5000 lbs (2268 kgs) |
| Motor: permanent magnet |
12V:Input: 2.8kW /3.8hp; Output: 1.4kW / 1.9hp
24V:Input: 4.3kW / 5.8hp; Output: 1.7kW /2.3hp |
| Gear reduction ratio | 294:1(12V); 210:1(24V) |
| Cable (Dia.× L) | Ø1/4 “×79 ‘ (Ø6.4mm×24m) |
| Drum size (Dia.× L) | Ø2.48 “×5.5 ” (Ø63mm×139 mm) |
| Mounting bolt pattern | 6.55 “×4.5 ” (166.4mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
|
Line Pull
Ibs (kgs) |
Line Speed
Ft/min (m/min) |
Current
A |
Layer
of cable |
Rated line pull
lbs(kgs) |
Total Rope On Drum
ft (m) |
||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 5000(2268) | 14.8(4.5) | |
| 0(0) | 12.1(3.7) | 18.0(5.5) | 45 | 25 | 2 | 4200(1905) | 29.5(9.0) |
| 1000(454) | 10.5(3.2) | 15.7 (4.8) | 90 | 55 | 3 | 3700(1678) | 55.8(17.0) |
| 3000(1361) | 7.5 (2.3) | 11.5 (3.5) | 150 | 100 | 4 | 3200 (1452) | 78.7(24.0) |
| 5000(2268) | 4.9 (1.5) | 5.3 (1.6) | 230 | 180 | 5 | 5000(2268) | 14.8(4.5) |
| ITEM | EWK5000U | EWK5000S | EWK5000F |
| Overall dimensions |
18.4″×7.1″×9.6″
466mm×180mm×243mm |
17.5″×7.1″×11.7″
444mm×180mm×297mm |
17.5″×7.1″×10.6″
444mm×180mm×270mm |
| (L×W×H) | |||
| Net weight (Ibs) |
47.8
21.7 |
48.2
21.9 |
49.8
22.6 |
| (kgs) |
Overall Dimensions：17.5″ x 7.1″ x 11.7″
(L x W x H) 444mm x 180mm x 297mm
