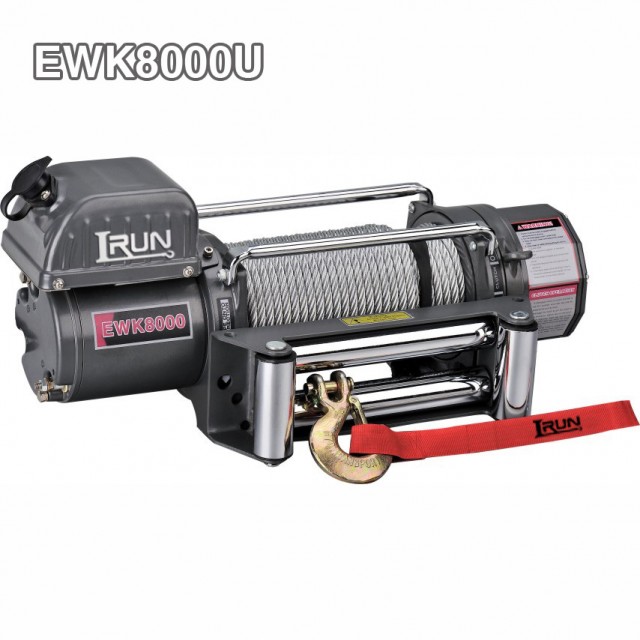

8000 lb Electric winch with Permanent Magnet Motor
The EWK8000U electric winch combines a listed 8,000 lb pulling capacity, a permanent magnet motor and automatic screw-cone braking for vehicle recovery installations requiring model-specific fitment review.
- Drive configurations: DC 12V or 24V options, with respective reduction ratios of 210:1 and 150:1.
- Operating features: Free-spooling clutch and remote operation through a control box and switch.
- Rope specification: Listed with 8.3 mm × 29 m wire rope and a 63 mm × 227 mm drum.
- U-version fitment: Listed at 555 × 180 × 243 mm and 28.8 kg, with a 254 × 114.3 mm mounting pattern using four M10 positions.
- Order requirements: Wireless control and a steel wire rope tensioner are available options; provide voltage, quantity and installation details for quotation.
- Description
Electric Winch EWK8000U with Permanent Magnet Motor and Auto Brake
The EWK8000U is an electric winch with a listed rated line pull of 8,000 lb (3,629 kg). It uses a permanent magnet motor and offers DC 12V or 24V configurations. A free-spooling clutch, automatic screw-cone braking and control-box switch operation are listed features.
- Listed capacity: 8,000 lb (3,629 kg).
- 12V reduction ratio: 210:1.
- 24V reduction ratio: 150:1.
The original performance table contains 5,000 lb data that does not match the stated product capacity. Request a confirmed EWK8000U performance sheet before using speed, current or rope-layer values for technical selection.
Permanent Magnet Motor and Voltage-Specific Reduction
The feature list and specification both identify a permanent magnet motor. The 12V and 24V versions have different listed input power, output power and reduction ratios, so they should be treated as distinct drive configurations.
- Electrical compatibility: Select the version matching the intended vehicle supply.
- Transmission reference: Use 210:1 for the listed 12V version and 150:1 for the listed 24V version.
- Technical approval: Request current model-specific operating data and electrical installation instructions.
The motor power entries do not establish continuous-duty capability or line speed at a particular load. Those requirements need separate confirmation.
Free-Spooling Clutch and Screw-Cone Brake
The EWK8000U lists a free-spooling clutch and automatic screw-cone braking. The installation should provide access to the clutch, while the operating manual should define permitted procedures and brake maintenance.
- Clutch access: Check operator clearance in the installed position.
- Operating procedure: Confirm engagement restrictions and approved recovery methods.
- Brake maintenance: Request inspection and service instructions.
The automatic brake does not by itself establish lifting approval or unrestricted load-holding capability. Neither is confirmed by the supplied information.
Product Specifications
The original specification table is retained below without changes to its data. Confirm the selected voltage and current technical documents before order approval.
| SPECIFICATION | |
| Rated line pull | 8000 lbs (3629 kgs) |
| Motor: permanent magnet |
12V:Input: 4.2kW / 5.5hp; Output: 1.4kW / 1.9hp
24V:Input: 5.8kW / 7.7hp; Output: 1.7kW /2.3hp |
| Gear reduction ratio | 210:1(12V); 150:1(24V) |
| Cable (Dia.× L) | Ø21/64 “×95 ‘ (Ø8.3mm×29m) |
| Drum size (Dia.× L) | Ø2.48 “×8.9” (Ø63mm×227mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
Original Performance and Rope-Layer Table
The following table preserves the supplied values. Its highest listed pulling point and first-layer rating are 5,000 lb, while cumulative rope storage reaches 24 m. These entries conflict with the 8,000 lb capacity and 29 m rope specification above.
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
|
Line Pull Ibs (kgs) |
Line Speed Ft/min (m/min) |
Current A |
Layer of cable |
Rated line pull lbs(kgs) |
Total Rope On Drum ft (m) |
||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 5000(2268) | 14.8(4.5) | |
| 0(0) | 12.1(3.7) | 18.0(5.5) | 45 | 25 | 2 | 4200(1905) | 29.5(9.0) |
| 1000(454) | 10.5(3.2) | 15.7 (4.8) | 90 | 55 | 3 | 3700(1678) | 55.8(17.0) |
| 3000(1361) | 7.5 (2.3) | 11.5 (3.5) | 150 | 100 | 4 | 3200 (1452) | 78.7(24.0) |
| 5000(2268) | 4.9 (1.5) | 5.3 (1.6) | 230 | 180 | |||
- Speed and current: Request confirmed EWK8000U data for the ordered voltage.
- Layer ratings: Obtain the applicable pulling capacity and cumulative rope storage table.
- Electrical installation: Request supply, cabling, connection and protection requirements.
This original table is retained for reference, not presented as verified 8,000 lb operating data. Do not extrapolate the missing rated-load performance or use its current values to approve an installation.
EWK8000U Dimensions and Related Versions
The original comparison table distinguishes the U, S and F versions. The U version is listed at 555 × 180 × 243 mm and 28.8 kg. These figures should be checked against the current drawing for the ordered configuration.
| ITEM | EWK8000U | EWK8000S | EWK8000F |
| Overall dimensions |
21.9″×7.1″×9.6″
555mm×180mm×243mm |
21.2″×7.1″×11.7″
538mm×180mm×297mm |
21.2″×7.1″×10.6″
538mm×180mm×270mm |
| (L×W×H) | |||
| Net weight (Ibs) |
63.5
28.8 |
64.2
29.1 |
68.1
31.0 |
| (kgs) |
- Mounting geometry: Confirm the 254 × 114.3 mm pattern and four M10 positions.
- Physical clearance: Review space for the winch body, clutch, wiring and rope path.
- Supporting structure: Confirm mounting support and fastener requirements with the installer.
The comparison table does not define control-box placement or every configuration difference between versions. Request the U-version installation drawing rather than inferring those details from the model suffix.
Controls, Accessories and OEM Requests
The feature list describes remote operation through a control box and switch. Wireless remote control and a steel wire rope tensioner are available options and should be specified separately.
- Base configuration: Select DC 12V or 24V and confirm the supplied switch arrangement.
- Optional equipment: Identify wireless control and rope tensioner requirements.
- Branding review: Submit logo files, marking positions and product label requirements.
- Packing review: Provide carton artwork, shipping marks and export packing requirements.
- Technical changes: Submit proposed rope, mounting or control modifications for assessment.
Irun Winch accepts OEM orders. Specific branding, material, color or structural changes are not confirmed standard options; Irun Winch should identify approved scope and any drawing, sample or development requirements.
The product information lists export carton packaging, ocean or air transportation, China as the place of origin and a CE certificate. Request the applicable compliance documents. MOQ, production lead time and sample terms require quotation-specific confirmation.
Applications and Buyer Selection
The EWK8000U can be evaluated for off-road and vehicle recovery installations where the confirmed pulling requirement, electrical supply and mounting arrangement match the selected configuration.
- Vehicle equipment installers: Review fitment, electrical requirements and operator access.
- Recovery equipment distributors: Define voltage-specific supply packages and included accessories.
- OEM purchasing teams: Obtain verified technical documents before approving a production specification.
For other capacities and configurations, compare the electric recovery winches range. The product name does not establish universal fitment or environmental protection ratings.
Typical Technical Review for a Recovery Equipment Distributor
This illustrative example describes a purchasing review, not a completed customer project. A recovery equipment distributor is evaluating EWK8000U for customers who need a permanent magnet motor configuration and documented installation requirements.
Buyer Requirement: The distributor needs to confirm voltage-specific performance, applicable rope-layer capacities and the complete control package. The buyer also needs to resolve the difference between the 8,000 lb specification and the supplied 5,000 lb performance table.
Solution: Irun Winch would review the required voltage, quantity, mounting information and accessory requests. The technical review would establish the correct model-specific performance sheet and installation drawing, identify supplied components and record any approved OEM labeling or packaging requirements.
Result: The intended outcome is a verified product specification before ordering or offering the model to installers. This example does not claim a delivered order, proven field result or measured service-life improvement.
Electric Winch Questions for Procurement
Does EWK8000U use a permanent magnet motor?
Yes. Both the feature list and specification identify a permanent magnet motor, with separate power entries for the 12V and 24V versions.
Do the voltage versions have the same reduction ratio?
No. The listed ratio is 210:1 for 12V and 150:1 for 24V.
Can the original performance table be used as 8,000 lb data?
No. It lists a 5,000 lb highest pulling point and first-layer rating, with 24 m cumulative rope storage. Request confirmed EWK8000U data before technical selection.
What dimensions apply to the U version?
The table lists 555 × 180 × 243 mm and a net weight of 28.8 kg. Confirm the current drawing for the ordered configuration.
Are wireless control and the tensioner included?
They are listed as available options. Confirm inclusion, specifications and pricing in the quotation.
Is lifting approval provided?
No lifting approval is established by the supplied description. This page presents a vehicle recovery product, not a certified lifting hoist.
What documentation should buyers request?
Request the approved drawing, verified performance and rope-layer tables, wiring instructions, operating manual and applicable CE documents.
What are the MOQ, lead time and sample conditions?
These are not published in the supplied information. Irun Winch should confirm terms according to voltage, quantity, accessory package and OEM scope.
About Irun Winch
Established in 1997, Zhejiang Jinhua Runye Tech. Co., Ltd. (Irun Winch) develops and manufactures vehicle winches and off-road accessories. Its electric winch range is supported by precision machining resources, motor testing equipment and comprehensive winch test systems. Irun Winch provides OEM service and supplies customers in more than 50 countries and regions.
Information for an EWK8000U Quotation
The following details help Irun Winch define the supply configuration:
- Required quantity and DC 12V or DC 24V drive.
- Vehicle application, mounting layout and available installation space.
- Wireless control, rope tensioner and other accessory requirements.
- OEM logo, labeling or export carton requests, if applicable.
- Delivery destination and any sample or technical documentation requirements.
Order approval should confirm the correct 8,000 lb technical data, U-version drawing, supplied controls and accessories, OEM scope, MOQ and lead time.
