4×4 Electric Reovery Winches 8000lbs For Suv or Jeep
Packaging: Export Caton
Brand: OEM order acceptable
Transportation: Ocean,Air
Place of Origin: China
Certificate: CE Certificate
- Description
EWG8000S
8000 lbs Electric Winch Model No. EWG8000S is our pioneer product of series wound recovery 4×4 winches.It still has a long term fine sales because of our insisting on effort to improve product quality and control production cost.
Features:
1. Free spooling clutch
2. Automatic screw cone braking action
3. DC 12V or DC 24V Power drive optional
4. Series Wound Motor
5. Remote control through control box and switch
6. Wireless remote control available F type fixed in control box
7. SWR tensioner available
EWG8000
| SPECIFICATION | |
| Rated line pull | 8000 lbs (3629 kgs) |
| Motor: Series Wound |
12V:Input: 3.8kW / 5.1hp; Output: 2.7kW / 3.6hp
24V:Input: 5.0kW / 6.7hp; Output: 3.0kW /4.0hp |
| Gear reduction ratio | 210:1(12V); 150:1(24V) |
| Cable (Dia.× L) | Ø21/64 “×95 ‘ (Ø8.3mm×29m) |
| Drum size (Dia.× L) | Ø2.48 “×8.9 ” (Ø63mm×227mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
|
Line Pull
Ibs (kgs) |
Line Speed
Ft/min (m/min) |
Current
A |
Layer
of cable |
Rated line pull
lbs(kgs) |
Total Rope On Drum
ft (m) |
||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 8000(3629) | 19.7 (6.0) | |
| 0(0) | 24.0(7.3) | 34.4(10.5) | 80 | 50 | 2 | 6500(2948) | 42.7 (13.0) |
| 2000(907) | 12.5(3.8) | 19.0(5.8) | 150 | 90 | 3 | 5500(2495) | 68.9(21.0) |
| 4000(1814) | 8.9(2.7) | 12.8 (3.9) | 220 | 135 | 4 | 4800(2177) | 95.1(29.0) |
| 6000(2722) | 6.9 (2.1) | 9.8(3.0) | 270 | 170 | |||
| 8000(3629) | 5.6(1.7) | 6.6 (2.0) | 320 | 210 | |||

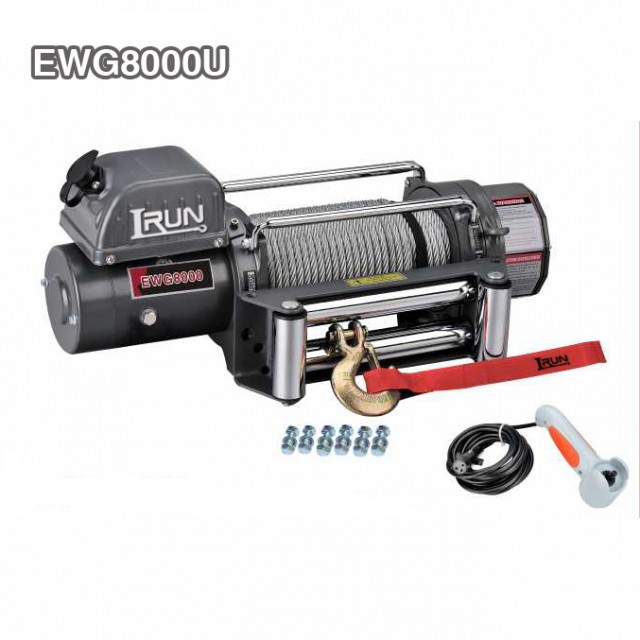

| ITEM | EWG8000U | EWG8000S | EWG8000F |
| Overall dimensions |
22.4″×7.1″×9.6″
570mm×180mm×243mm |
22.4″×7.1″×11.7″
570mm×180mm×297mm |
22.4″×7.1″×10.6″
570mm×180mm×270mm |
| (L×W×H) | |||
| Net weight (Ibs) |
72.5
32.8 |
72.9
33.1 |
73.8
33.5 |
| (kgs) |
Overall Dimensions：22.4″ x 7.1″ x 11.3″
(L x W x H) 570mm x 180mm x 286mm
Net Weight：33.1 KGS
Looking for ideal 4×4 Winches 8000lbs Manufacturer & supplier ? We has a wide selection at great prices to help you get creative. All the Electric Winch for 4×4 are quality guaranteed. We are China Origin Factory of 4×4 Electric Winch. If you have any question, please feel free to contact us.
