2 Speed Hydraulic Winch 20000 lb For Wreckers Or Trailers With Two speed and Clutch 2 in 1 Handgrip
Packaging: Export Caton
Brand: OEM order acceptable
Transportation: Ocean,Air
Place of Origin: China
Certificate: CE Certificate
- Description

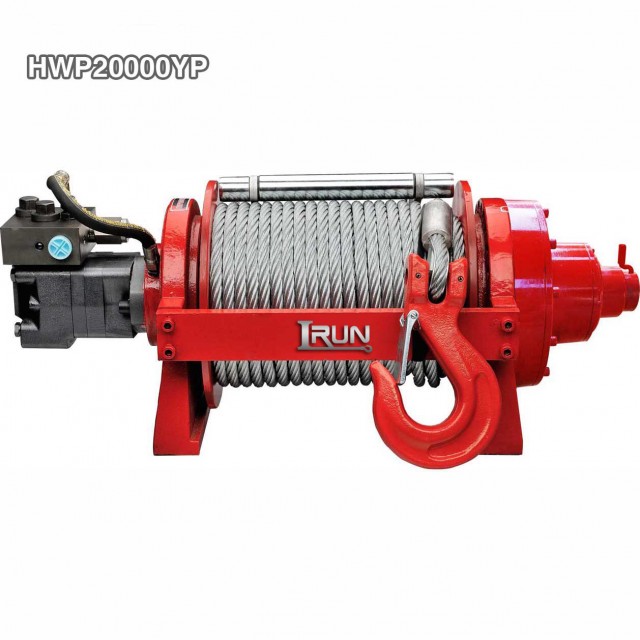

2 Speed Hydraulic Winch 20000 lb For Wreckers Or Trailers With Two speed and Clutch 2 in 1 Handgrip Item No.HWP20000YP
Great for Wreckers, Trailers, or Severe-Duty Applications This winch has a 20,000 lb pulling capacity and designed for use on trailers, rollback trailers and Heavy duty applications. It`s equipped with Hydraulic actions multi-disc brake designed to to hold the full-rated load, and high strength hardened two stage planetary gear reducer provides for dual speeds optional and reliability. Besides Hook, Wire rop and SWR tensioner, it`s also supplied a counter blance valve.
Features:
1.) Full steel reducer gear
2.) IRUN patent two stage planetary gear reducer
3.) Two speed and clutch integrate with one handgrip
4.) Patent clutch and speed shift structure
5.) Clutch and two speed gear actions auto engagement
6.) Hydraulic actions mult-disc brake
7.) Counter balance value supplied
8.) For engineering use available
9.) SWR tensioner available
10.) Capable of lifting
ITEM NO.HWP20000YP (Manual clutch, Two speed)
ITEM NO.HWP20000Y1P (Air clutch, Single speed)
ITEM NO.HWP20000Y2P (Air and manual mixed clutch,Single Speed)
ITEM NO.HWP20000Y3P (Air clutch and air actions, Two speed)
HWP20000YP/HWP20000Y3P
| SPECIFICATION | |
| Rated line pull | 20000 lbs (9072 kgs) |
| Motor: permanent magnet | 100ml/r |
| Oil Flow | 15~75L/min |
| Pressure | 17.5Mpa |
| Gear reduction ratio | High speed: 6:1;Low speed: 39:1 |
| Cable (Dia.× L) | Ø9/16″×157 ‘ (Ø14mm×48m) |
| Drum size (Dia.× L) | Ø5.4 “×12.4” (Ø138mm×316mm) |
| Mounting bolt pattern | 17.0 “×2.5 ” ×7.6 ” (431mm×64mm×192mm) 8-M14 |
|
Line pull lbs (kgs) |
Pressure
Mpa(Psi) |
Flow G/min (L/min) |
Line speed ft/min(m/min) |
||
| Low speed | High speed | Low speed | High speed | ||
|
0 |
0 |
2.5(362.6) |
4.0(15) |
5.9(1.8) |
27.2(8.3) |
|
4000(1814) |
696(316) |
4.2(609.1) |
7.9(30) |
11.8(3.6) |
60.7(18.5) |
|
8000(3629) |
1391(631) |
8.5(1232.8) |
13.2(50) |
19.7(6.0) |
106.0(32.3) |
|
15000(6804) |
2609(1183) |
14.0(2030.5) |
15.9(60) |
23.6(7.2) |
129.3(39.4) |
|
20000(9072) |
3478(1578) |
17.5(2538.1) |
19.9(75) |
29.5(9.0) |
164.0(50.0) |
|
Layer of cable |
Rated line pull Per layer lbs(kgs) |
Total rope on drum ft (m) |
White oil flow10L/min |
|
|
Low speed |
High speed |
|||
|
1 |
20000(9072) |
33.8(10.3) |
23.6(7.2) |
135.8(41.4) |
|
2 |
16889(7661) |
73.8(22.5) |
27.9(8.5) |
160.8(49.0) |
|
3 |
14615(6629) |
117.8(35.9) |
32.2(9.8) |
185.7(56.6) |
|
4 |
12881(5843) |
157.5(48.0) |
36.7(11.2) |
204.1(62.2) |
| ITEM | HWP20000YP | HWP20000Y3P | |
| Overall dimensions | 32.3″×15.4″×12.6″ | 32.7″×15.4″×12.6″ | |
| (L×W×H) | 821mm×390mm ×320mm | 830mm×390mm ×320mm | |
| Net weight (Ibs) | 360 | 360 | |
| (kgs) | 163 | 163 |
Looking for ideal Industrial Winch 20000 lbs Manufacturer & supplier ? We has a wide selection at great prices to help you get creative. All the Industrial Hydraulic Winch are quality guaranteed. We are China Origin Factory of Industrial Winches For Trucks. If you have any question, please feel free to contact us.
