12v Or 24v 4×4 Electric Winch 9000lbs With Stand-Up Control Box
Packaging: Export Caton
Brand: OEM order acceptable
Transportation: Ocean,Air
Place of Origin: China
Certificate: CE Certificate
- Description

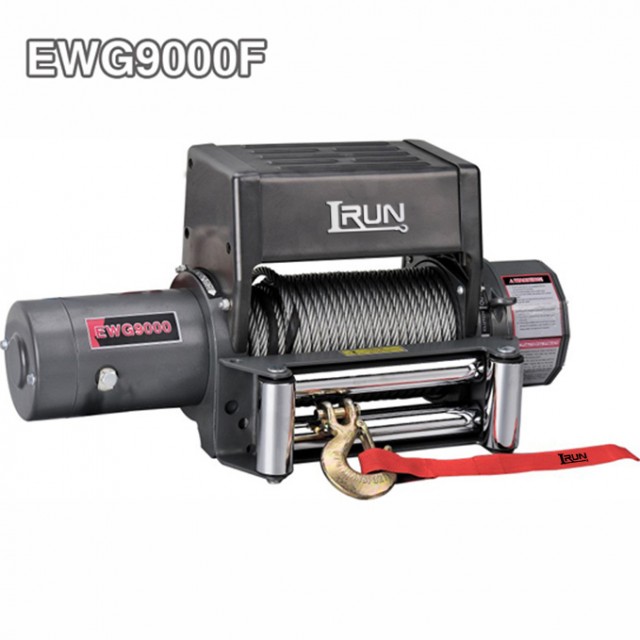

EWG9000F
Our Item No.EWG9000F – 9000 lbs Electric Winch belongs to our first generation of Series Wound Motor 4×4 recovery Winch. It has the stand-up control box style.It’s famouse in our clients becuase of reasonable prices and good performance and ideal for Offroad car or Jeep.
Features:
1. Free spooling clutch
2. Automatic screw cone braking action
3. DC 12V or DC 24V Power drive optional
4. Series Wound Motor
5. Remote control through control box and switch
6. Wireless remote control available F type fixed in control box
7. SWR tensioner available
EWG9000F
| SPECIFICATION | |
| Rated line pull | 9000 lbs (4082 kgs) |
| Motor: Series Wound |
12V:Input: 3.4kW / 4.6hp; Output: 2.7kW / 3.6hp
24V:Input: 4.3kW / 5.8hp; Output: 3.0kW /4.0hp |
| Gear reduction ratio | 294:1(12V); 210:1(24V) |
| Cable (Dia.× L) | Ø21/64 “×95 ‘ (Ø8.3mm×29m) |
| Drum size (Dia.× L) | Ø2.48″×8.9 ” (Ø63mm×227 mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
|
Line Pull
Ibs (kgs) |
Line Speed
Ft/min (m/min) |
Current
A |
Layer
of cable |
Rated line pull
lbs(kgs) |
Total Rope On Drum
ft (m) |
||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 9000(4082) | 19.7 (6.0) | |
| 0(0) | 17.1(5.2) | 23.0(7.0) | 80 | 50 | 2 | 7350 (3334) | 42.7 (13.0) |
| 2000(907) | 10.8(3.3) | 14.8(4.5) | 120 | 75 | 3 | 6200(2812) | 68.9(21.0) |
| 4000(1814) | 7.9 (2.4) | 10.5(3.2) | 170 | 115 | 4 | 5400 (2449) | 95.1(29.0) |
| 6000(2722) | 6.2 (1.9) | 8.2(2.5) | 220 | 145 | |||
| 9000(4082) | 4.9(1.5) | 6.6 (2.0) | 280 | 180 | |||
| ITEM | EWG9000U | EWG9000S | EWG9000F |
| Overall dimensions |
22.4″×7.1″×9.6″
570mm×180mm×243mm |
22.4″×7.1″×11.7″
570mm×180mm×297mm |
22.4″×7.1″×10.6″
570mm×180mm×270mm |
| (L×W×H) | |||
| Net weight (Ibs) |
73.8
33.8 |
75.0
34.0 |
75.3
34.2 |
| (kgs) |
Overall Dimensions：22.4″ x 7.1″ x 10.6″
(L x W x H) 570mm x 180mm x 270mm
Net Weight： 34.2 KGS
Looking for ideal 4×4 Winches 9000 Lb Manufacturer & supplier ? We has a wide selection at great prices to help you get creative. All the Electric Winch for 4×4 are quality guaranteed. We are China Origin Factory of Recovery Winch. If you have any question, please feel free to contact us.
