- Description

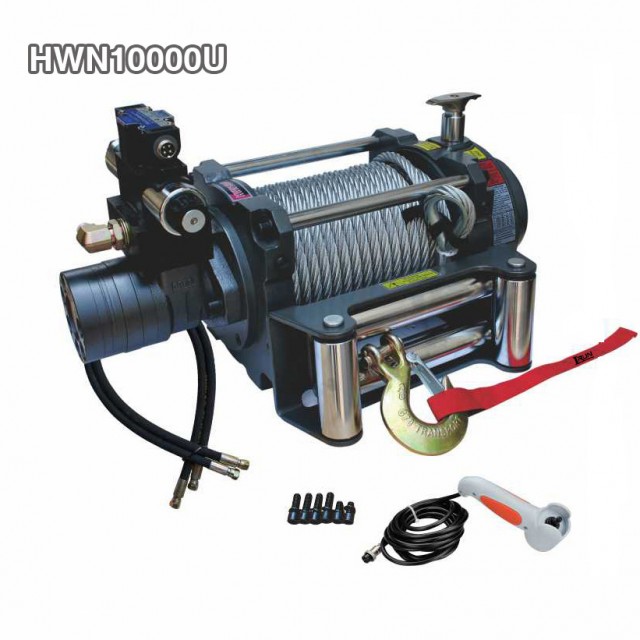

Heavy Duty Hydraulic Winch Item No. HWN10000U Winching Capacity of up to 10000lbs
Each winch come along with a seperated electric valve, a wire rope with hook,a roller failread and a set of Hydraulic Accessories.
The winch is equipped with a Heavy duty automatic bracking action for safe operation,and a patent hardened steel two stage planetar gear reducer provides high efficient transmisson.
the following outstanding features:
1. Free spooling clutch: Manual, Air cluch or Manual and Air
2. Automatic screw cone braking action
3. Specially designed differential gearing for heavy duty
4. Specially designed shape for convenience of installation and good looking
5. For engineering use available
6. DC 12V or DC 24V Power drive optional
7. SWR tensioner available
8. Can not use it working as lift
HWN10000U
SPECIFICATION | |
Rated line pull | 10000 lbs (4536kgs) |
Motor: permanent magnet | 65ml/r |
Oil Flow | 5~45L/min |
Pressure | 11.5Mpa |
Gear reduction ratio | 25.5:1 |
Cable (Dia.× L) | Ø13/32 “×83.7 ‘ (Ø10.2mm×25.5m) |
Drum size (Dia.× L) | Ø2.8″×8. 6″ (Ø72mm×219mm) |
Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3mm) 4-M12 |
Line pull lbs (kgs) |
Pressure
Mpa(Psi) |
Flow
G/min (L/min) |
Line speed ft/min(m/min) |
0 | 2.0(290.1) | 1.3(5.0) | 2.3 (0.7) |
3000(1361) | 3.4(453.1) | 2.6(10.0) | 4.6(1.4) |
6000(2722) | 6.8(986.2) | 5.3(20.0) | 8.9(2.7) |
9000(4082) | 10.3(1493.9) | 9.2(35.0) | 15.1(4.6) |
10000(4536) | 11.5(1668.0) | 10.6(40.0) | 17.4(5.3) |
Layer of cable |
Rated line pull
lbs(kgs) |
Total rope on drum
ft (m) |
|
1 | 10000(4536) | 16.4 (5.0) | |
2 | 8012(3634) | 37.2(11.3) | |
3 | 6683(3031) | 60.9(18.6) | |
4 | 5732(2600) | 83.7(25.5) |
ITEM | HWN10000A | HWN10000U | |
Overall dimensions | 20.7″×8.1″×9.7″ | 20.7″×8.1″×11.1″ | |
(L×W×H) | 525mm×206mm ×246mm | 525mm×206mm ×282mm | |
Net weight (Ibs) | 134.5 | 134.5 | |
(kgs) | 61.0 | 61.2 |
Overall Dimensions 20.7″ x 8.1″ x 11.1″
(L x W x H) 525mm x 206mm x 282mm
Net Weight 61.2 KGS
