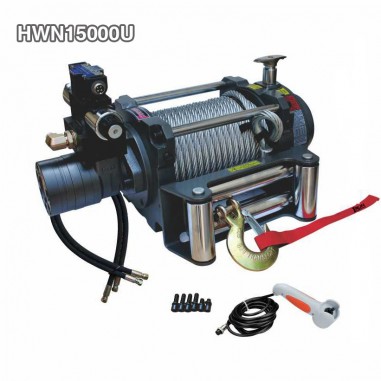

Hydraulic 4WD Winch 15000lbs For Truck With Hydraulic Accessories
Hydraulic 4WD winch 15000lbs for truck is a heavy-duty pulling system designed for truck-mounted recovery, towing and industrial applications. It combines high line pull, automatic screw-cone braking and a two-stage planetary gearbox for stable performance under continuous load. Irunwinches supports OEM branding, custom packaging and selected spec adjustments for distributors and fleet buyers.
- 15,000 lb rated line pull for heavy-duty truck and recovery work.
- Automatic screw-cone braking action for safer operation under load.
- Two-stage planetary gear reducer for efficient power transmission.
- Complete hydraulic accessories including electric valve and hose set.
- OEM logo, color and packaging options for brand and fleet programs.
- Description
Hydraulic Truck Winch 15000 lb for Vehicle Recovery and Pulling Work
Item No. HWN15000U is a hydraulic truck winch with a rated first-layer line pull of 15,000 lb (6,804 kg). It combines a two-stage planetary reducer with automatic screw-cone braking for vehicle-mounted recovery and pulling applications. The listed supply includes wire rope, a roller fairlead and winch accessories; the exact hydraulic accessory package should be confirmed in the order specification.
Key Features for Truck Recovery Installations
For vehicle equipment builders and fleet buyers, the main selection points are pulling capacity, hydraulic supply, clutch operation and mounting compatibility. The HWN15000U provides the following listed features:
- Rated first-layer line pull of 15,000 lb, with separate capacity figures for subsequent rope layers.
- Automatic screw-cone braking, with operation and maintenance requirements to follow the model-specific manual.
- Hardened-steel two-stage planetary reducer with a listed gear reduction ratio of 33.4:1.
- Free-spooling clutch options described as manual, pneumatic, or combined manual and pneumatic operation.
- Wire rope, roller fairlead and winch accessories listed in the original product description.
- Optional steel wire rope tensioner for the selected installation configuration.
The original product information describes the reducer as patented and also refers to differential gearing for heavy-duty use. The current technical documentation should confirm the transmission arrangement and any patent information required for procurement approval.
Hydraulic Drive and Installation Requirements
The HWN15000U has a listed motor displacement of 80 ml/rev, an oil flow range of 5–60 L/min and a pressure specification of 13 MPa. The hydraulic motor drives the reducer and drum, while the installed circuit and operating conditions affect the available pulling performance.
At the listed 15,000 lb operating point, the performance table gives 13 MPa, 60 L/min and a line speed of 6.0 m/min. These values should be assessed together; the same speed must not be assumed at a lower hydraulic flow.
- Confirm available pump flow and pressure at the proposed winch connection point.
- Review hydraulic protection, return-line requirements and cooling arrangements with the installer.
- Check mounting clearance and access to the selected clutch mechanism.
- Confirm operating duration and maintenance requirements against the current manual.
The original features also list DC 12V or DC 24V power drive options without identifying the applicable component. This electrical option requires clarification before the installation configuration is finalized. No unlimited continuous-duty capability is assumed.
Product Specifications
| Specification | HWN15000U |
|---|---|
| Model No. | HWN15000U |
| Rated first-layer line pull | 15,000 lb (6,804 kg) |
| Motor displacement | 80 ml/rev |
| Listed hydraulic flow range | 5–60 L/min |
| Listed pressure specification | 13 MPa |
| Gear reduction ratio | 33.4:1 |
| Reducer | Hardened-steel two-stage planetary reducer |
| Brake | Automatic screw-cone braking |
| Free-spooling clutch | Manual, pneumatic, or combined manual and pneumatic options; confirm selected configuration |
| Wire rope diameter and length | 12 mm × 26.5 m |
| Drum diameter and length | 89 mm × 217 mm |
| Mounting bolt pattern | 254 mm × 114.3 mm; 4-M12 |
| Listed overall dimensions, L × W × H | 547 mm × 226 mm × 292 mm; verify against the current HWN15000U installation drawing |
| Listed net weight | 68.8 kg; original model table also lists 152 lb |
| Listed supplied items | Wire rope, roller fairlead and winch accessories; hydraulic package contents to be confirmed |
| Certification information | CE Certificate stated in the product listing; confirm applicable documentation and model coverage |
| Packaging | Export carton |
| OEM orders | Accepted; specific requirements subject to order confirmation |
| Transportation | Ocean or air freight |
| Place of origin | China |
| Electrical option | DC 12V or DC 24V power drive options listed; applicable component requires confirmation |
| Optional accessory | Steel wire rope tensioner |
| MOQ and production lead time | Confirmed in the quotation for the selected configuration and quantity |
| Application restriction | Pulling and recovery only; must not be used as a lifting device |
Performance at Listed Operating Points
The following data reproduces the supplied performance figures. Hydraulic flow and pressure vary between rows, so the table must not be read as a constant-flow comparison of pulling load and line speed.
| Line pull, lb (kg) | Pressure, MPa (psi) | Flow, L/min (listed gal/min) | Line speed, m/min (ft/min) |
|---|---|---|---|
| 0 | 2.0 (290.1) | 5.0 (1.3) | 0.5 (1.6) |
| 5,000 (2,268) | 4.3 (623.7) | 10.0 (2.6) | 1.0 (3.3) |
| 10,000 (4,536) | 8.7 (1,261.8) | 20.0 (5.3) | 2.0 (6.6) |
| 12,000 (5,443) | 10.0 (1,450.3) | 30.0 (7.9) | 3.0 (9.8) |
| 15,000 (6,804) | 13.0 (1,885.4) | 60.0 (15.9) | 6.0 (19.7) |
Confirm the test conditions and selected model configuration before using these values for hydraulic system design.
Line Pull and Rope Capacity by Layer
The rated line pull decreases across the listed rope layers. The 15,000 lb rating applies to the first layer, while the rope lengths below represent cumulative rope on the drum.
| Rope layer | Listed line pull, lb (kg) | Total rope on drum, m (ft) |
|---|---|---|
| 1 | 15,000 (6,804) | 5.5 (18.0) |
| 2 | 12,120 (5,498) | 12.4 (40.7) |
| 3 | 10,168 (4,612) | 20.1 (65.9) |
| 4 | 8,757 (3,972) | 26.5 (86.9) |
Model Comparison: HWN15000A and HWN15000U
This page describes HWN15000U. The HWN15000A dimensions and weight are included for comparison and should not be substituted for the U-version data.
| Item | HWN15000A | HWN15000U |
|---|---|---|
| Listed dimensions, L × W × H, in | 21.5 × 8.9 × 10.3 | 21.5 × 8.9 × 11.5 |
| Listed dimensions, L × W × H, mm | 547 × 226 × 262 | 547 × 226 × 292 |
| Listed net weight, lb | 151.5 | 152 |
| Listed net weight, kg | 68.5 | 68.8 |
Obtain the current model-specific installation drawing before finalizing mounting plates, truck body clearance or other structural interfaces.
OEM Order and Configuration Options
Irun Winch provides OEM service and accepts OEM orders for the HWN15000U. The listed clutch and accessory options can be reviewed alongside branding and packaging requests to define the order configuration.
- Clutch configuration: specify manual, pneumatic, or combined operation requirements.
- Accessory package: identify the required hydraulic components and whether a steel wire rope tensioner is needed.
- Branding: submit logo artwork, label text and any nameplate requirements for feasibility confirmation.
- Packaging: provide carton markings, label requirements and packing specifications for review.
- Engineering requests: submit drawings for proposed mounting or hydraulic connection changes; these are not assumed to be standard adjustments.
Irun Winch should confirm the accepted OEM scope, MOQ, production lead time and any sample or development terms in the quotation.
Applications and Typical Buyers
This 15,000 lb hydraulic truck winch is a candidate for truck-mounted recovery and engineering pulling installations where the hydraulic supply, mounting arrangement and required pulling capacity match its specifications.
- Tow truck and recovery equipment builders assessing vehicle-mounted pulling systems.
- Truck body integrators checking installation dimensions, hydraulic connections and clutch access.
- Service fleet buyers selecting recovery equipment for defined vehicle and load conditions.
- Distributors sourcing hydraulic winches with an agreed OEM configuration and accessory package.
Model approval should account for pulling resistance and working rope position, not vehicle category alone. The winch must not be used for lifting or as a substitute for independent transport load restraints.
Typical Procurement Scenario
This example illustrates an order review for a truck equipment integrator considering the HWN15000U. It is a procurement scenario, not a verified customer case.
Buyer Requirement
The integrator would need to confirm recovery load conditions, available pump capacity, installation clearance and operator access. The proposed order would also identify clutch operation, hydraulic accessories and any branded labeling or packing requirements.
Solution
Irun Winch would review the submitted requirements against the selected model, including its hydraulic operating points, mounting pattern and U-version dimensions. The order specification would separate supplied items from optional accessories and any requests requiring development.
Result
The intended outcome is a configuration checklist covering fitment, hydraulic compatibility, clutch selection, accessory scope and commercial terms. Approval would remain subject to current drawings and installer assessment; no completed installation or field-performance result is claimed.
FAQ
What applications should be assessed for this hydraulic truck winch?
The HWN15000U can be assessed for vehicle-mounted recovery and pulling applications. Suitability depends on pulling conditions, rope-layer capacity, hydraulic supply and the approved installation arrangement.
Does the 15,000 lb rating apply to every rope layer?
No. The supplied table lists 15,000 lb on the first layer, 12,120 lb on the second, 10,168 lb on the third and 8,757 lb on the fourth.
What hydraulic flow and pressure are listed?
The specification lists 5–60 L/min and 13 MPa. The listed full-load operating point uses 60 L/min at 13 MPa. Confirm the installation requirements and operating limits against current technical documentation.
What comes with the winch?
The original description lists wire rope, a roller fairlead and winch accessories. Valves, hoses, fittings and other hydraulic components should be itemized in the quotation rather than assumed to be included.
Which OEM options can be requested?
Irun Winch accepts OEM orders. Buyers can submit branding, packaging and configuration requirements for review. Specific manufacturing methods, engineering changes and sample terms require confirmation.
What does the DC 12V or 24V option refer to?
The original feature list does not identify the applicable component. Clarify this option with Irun Winch before finalizing electrical requirements. The product is described as hydraulically driven.
What documents and commercial terms should be confirmed?
Request the current installation drawing, operating and maintenance instructions, applicable compliance documents, MOQ and production lead time. The product listing states CE Certificate; confirm model coverage and document applicability for the intended market.
Can this winch be used as a lifting device?
No. The product features explicitly exclude lifting use. The winch is intended for pulling and recovery, not lifting or suspending loads.
About Irun Winch
Established in 1997, Zhejiang Jinhua Runye Tech. Co., Ltd. (Irun Winch) specializes in the research, development and manufacture of vehicle winches and off-road accessories. Its range includes hydraulic winches for vehicle recovery, towing and engineering applications, alongside electric and industrial winches. The company's production base includes precision machining equipment, winch test systems and motor testing equipment to support product development and quality control. Irun Winch provides OEM service, with requirements for the HWN15000U reviewed against the selected configuration and application.
What to Prepare for a Quote
For an HWN15000U quotation and configuration review, provide the following information:
- Required quantity, truck type and intended recovery or pulling application.
- Expected pulling conditions and available hydraulic flow and pressure.
- Mounting clearance or installation drawings and the preferred clutch configuration.
- Required hydraulic accessories and any rope tensioner request.
- OEM logo files, label text and packaging requirements, where applicable.
- Required delivery date, sample request and documents needed for technical approval.
The quotation should confirm the exact model, included components, accepted OEM scope, MOQ, production schedule and any sample terms before order placement.
