- Description
EWD series winch are perfect two-speed electric winches with Max. Pulling force of 5,500 lbs at high speed. Speed shift and clutch control could be engaged simultaneously to deliver user more convenience.

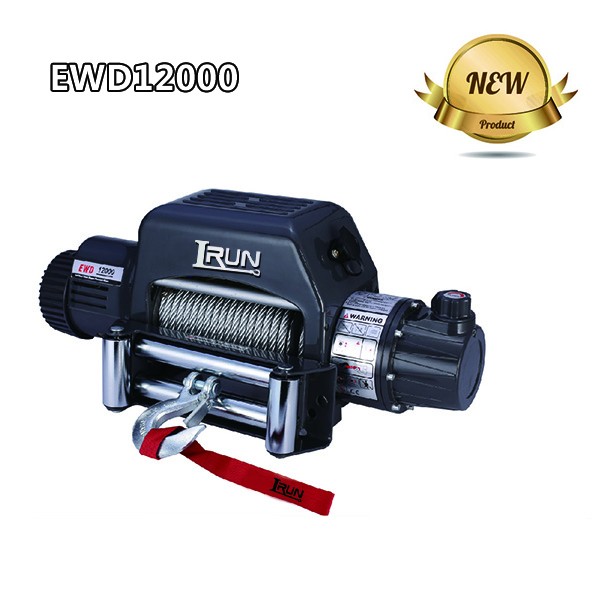

Dual Speed Electric Winch 12000lbs Item No. EWD12000
Features:
- Full steel reducer gear.
- Patent three stage planetary gear reducer.
- Two speed and clutch and speed shift structure.
- Clutch and two speed gear actions auto engagement.
- Automatic screw cone braking action.
- Series wound motor.
- Wireless remote control available.
- Remote control through control box and switch.
- DC 12v or DC 24v Power drive optional.
EWD 12000
Specification: | ||||
Rated line pull | 12000 lbs (5443 kg) | |||
Motor: Series wound | 12V:Input: 5.4kW / 7.2hp | |||
Output: 2.4kW / 3.2hp | ||||
24V:Input: 4.8kW / 6.4hp | ||||
Output: 3.1kW / 4.2hp | ||||
Gear reduction ratio | 267:1 (Low speed); 86:1 (High speed) | |||
Cable (Dia.× L) | Ø13/32 “×83. 7′ (Ø10.2mm×25.5m) | |||
Drum size (Dia.× L) | Ø2.48 “×8.8 ” (Ø63mm×223 mm) | |||
Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
Low Speed | High Speed | ||||||||
Line Pull Lbs.(kg) | Line Speed ft/min(m/min) |
Current
A |
Line Pull Lbs.(kg) | Line Speed ft/min(m/min) |
Current
A |
||||
12DC | 24DC | 12DC | 24DC | 12DC | 24DC | 12DC | 24DC | ||
0 | 29.5(9.0) | 31.2(9.5) | 70 | 60 | 0 | 88.6(27.0) | 91.9(28.0) | 75 | 60 |
6000(2722) | 7.9(2.4) | 9.2(2.8) | 250 | 130 | 3000(1391) | 22.3(6.8) | 23.3(7.1) | 250 | 150 |
9000(4082) | 6.6(2.0) | 7.5(2.3) | 345 | 160 | 4000(1814) | 13.8(4.2) | 19.0(6.0) | 400 | 190 |
12000(5443) | 4.9(1.5) | 6.2(1.9) | 450 | 200 | 5000(2268) | 10.5(3.2) | 14.8(4.5) | 490 | 240 |
Line pull and rope capacity in layer | ||
Layer of cable | Rated line pull Lbs. (kg) | Total rope on drum ft (m) |
1 | 12000(5443) | 16.1(4.9) |
2 | 9562(4337) | 36.4(11.1) |
3 | 7948(3605) | 60.0(18.3) |
4 | 6800(3084) | 83.7(25.5) |
ITEM | EWD 12000U | EWD 12000S | EWD 12000F |
Overall dimensions | 25.1″×6.3″×10.0″ | 25.1″×6.3″×11.1″ | 25.1″×6.5″×9.9″ |
(L×W×H) | 637mm×160mm×254mm | 637mm×160mm×283mm | 637mm×166mm×251mm |
Net weight (Ibs/kg) | 90.4lbs / 41.0kg | 92.6lbs / 42kg | 97lbs / 44kg |
