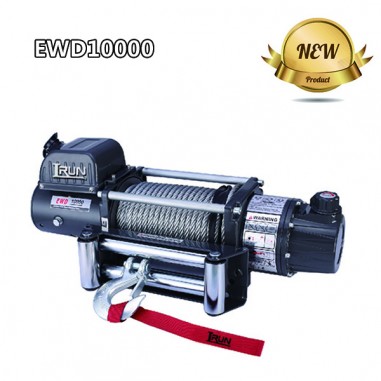

Two Speed 4×4 Electric Winch 10000 Lbs With Patent Clutch Item No. EWD10000
EWD SERIES Winch series are perfect two-speed electric winches with Max. Pulling force of 5,500 lbs at high speed. Speed shift and clutch control could be engaged simultaneously to deliver user more convenience.
Features:
- Full steel reducer gear.
- Patent three stage planetary gear reducer.
- Two speed and clutch and speed shift structure.
- Clutch and two speed gear actions auto engagement.
- Automatic screw cone braking action.
- Series wound motor.
- Wireless remote control available.
- Remote control through control box and switch.
- DC 12v or DC 24v Power drive optional.
EWD 10000
Specification: | ||||
Rated line pull | 10000 lbs (4536 kg) | |||
Motor: Series wound | 12V:Input: 4.3kW / 5.7hp | |||
Output: 2.1kW / 2.8hp | ||||
24V:Input: 4.1kW / 5.5hp | ||||
Output: 2.8kW / 3.8hp | ||||
Gear reduction ratio | 267:1 (Low speed); 86:1 (High speed) | |||
Cable (Dia.× L) | Ø3/8 “×85 ‘ (Ø9.2mm×26m) | |||
Drum size (Dia.× L) | Ø2.48 “×8.8 ” (Ø63mm×223 mm) | |||
Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
Low Speed | High Speed | ||||||||
Line Pull Lbs.(kg) | Line Speed ft/min(m/min) |
Current
A |
Line Pull Lbs.(kg) | Line Speed ft/min(m/min) |
Current
A |
||||
12DC | 24DC | 12DC | 24DC | 12DC | 24DC | 12DC | 24DC | ||
0 | 28.9(8.8) | 19.7(9.2) | 70 | 50 | 0 | 78.7(24.0) | 82(25.0) | 75 | 60 |
6000(2722) | 8.6(2.7) | 9.2(2.8) | 230 | 100 | 3000(1391) | 20.3(6.2) | 22.3(6.8) | 300 | 135 |
8000(3629) | 7.9(2.0) | 7.9(2.4) | 280 | 130 | 4000(1814) | 16.4(5.0) | 19.0(5.8) | 365 | 170 |
10000(4536) | 4.9(1.5) | 6.6(2.0) | 360 | 170 | 4500(2041) | 13.1(4.0) | 17.1(5.2) | 400 | 210 |
Line pull and rope capacity in layer | ||
Layer of cable | Rated line pull Lbs. (kg) | Total rope on drum ft (m) |
1 | 10000(4536) | 17.4(5.3) |
2 | 7969(3615) | 39.4(12.0) |
3 | 6624(3005) | 65.0(19.8) |
4 | 5667(2571) | 85.3(26.0) |
ITEM | EWD 10000U | EWD 10000S | EWD 10000F |
Overall dimensions | 24.4″×6.3″×10.0″ | 24.4″×6.3″×11.1″ | 24.4″×6.5″×9.9″ |
(L×W×H) | 619mm×160mm×254mm | 619mm×160mm×283mm | 619mm×166mm×251mm |
Net weight (Ibs/kg) | 86.0lbs / 39.0kg | 88.2lbs / 40kg | 92.6lbs / 42kg |
