Atv Utility Electric Winch 3500 Lbs

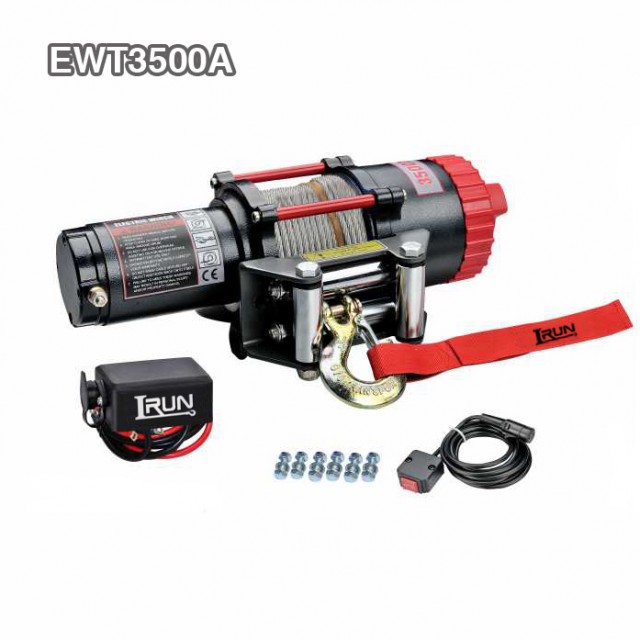

The EWT3500A ATV utility winch combines a 3,500 lb first-layer pulling capacity, a three-stage planetary steel gear reducer and a separate control box for compatible vehicle recovery and utility installations.
- Gear and brake system: A 166:1 reduction ratio, free-spooling clutch and automatic screw-cone braking.
- Drive selection: DC 12V or 24V permanent magnet motor configurations with separate published performance values.
- Control arrangement: Each winch is listed with a separate control box; confirm the supplied switch and operator controls.
- Installation details: Listed with 79.5 mm mounting spacing, two M8 positions, 5.4 mm × 13.4 m wire rope and an A-version net weight of 12.3 kg.
- OEM quotation: Irun Winch accepts OEM orders; provide voltage, quantity, mounting information and any labeling or packing requirements.
- Description
ATV Utility Winch EWT3500A with Steel Gears and Separate Controls
The EWT3500A is an electric ATV utility winch rated at 3,500 lb (1,588 kg) on the first rope layer. It combines a permanent magnet motor, a three-stage planetary steel gear reducer and automatic screw-cone braking. The separate control box is a listed part of the supply arrangement and should be considered alongside the winch body when planning the installation.
- First-layer rated pull: 3,500 lb (1,588 kg).
- Transmission: Three-stage planetary steel gear reducer with a 166:1 reduction ratio.
- Mounting interface: Listed 79.5 mm spacing with two M8 positions.
The intended pulling task, vehicle electrical supply and mounting structure determine suitability. The 3,500 lb rating is not a universal vehicle weight limit or a guarantee of fitment.
Separate Control Box and Operator Controls
The original feature list states that each winch comes with a separate control box. It also describes direct high-current switch control, control-box switch operation and an ATV handlebar switch. The order specification should identify which operating arrangement is supplied with the selected version.
- Control-box position: Identify the proposed mounting location and available space.
- Operator interface: Confirm the required switch type and operating position.
- Electrical documentation: Request the wiring diagram and connection requirements for the supplied configuration.
The control options should not be interpreted as multiple complete circuits supplied simultaneously. Irun Winch should confirm the included controls, cables and connection components in the quotation.
Steel Planetary Reducer and Automatic Brake
Three-Stage Steel Gear Reduction
The EWT3500 feature list identifies a three-stage planetary steel gear reducer. The listed 166:1 ratio provides a specific transmission reference for model comparison without relying on unsupported efficiency claims.
- Gear specification: Confirm the reducer configuration in the technical documents.
- Maintenance information: Request lubrication and service requirements.
- Performance review: Compare the voltage-specific speed and current values at the required pull.
The supplied description does not specify a steel grade, measured transmission efficiency or continuous-duty rating. These details should not be inferred from the gear material alone.
Patented Clutch Structure and Screw-Cone Braking
A patented clutch structure, free-spooling clutch and automatic screw-cone braking are listed features. Their operating procedures and maintenance requirements should be reviewed before use.
- Clutch access: Keep the mechanism accessible after installation.
- Operating procedure: Confirm engagement restrictions and permitted recovery methods.
- Brake inspection: Follow the model-specific maintenance instructions.
The description identifies the clutch structure as patented; it does not establish that the gear reducer itself is patented. Lifting approval is not provided by the supplied data.
Product Specifications
The original specification table is retained without changes to its data. The 12V and 24V motor entries refer to separate drive configurations.
| SPECIFICATION | |
| Rated line pull | 3500 lbs (1588 kgs) |
| Motor: permanent magnet |
12V:Input: 2.0kW / 2.7hp; Output: 0.9 kW / 1.2hp
24V:Input: 2.4kW / 3.2hp; Output: 1.0 kW / 1.3hp |
| Gear reduction ratio | 166:1 |
| Cable (Dia.× L) | Ø 7/32″×44.0′ (Ø5.4mm×13.4m) |
| Drum size (Dia.× L) | Ø 2.0″×3.2″ (Ø50.4mm×82 mm) |
| Mounting bolt pattern | 3.13″ (79.5 mm) 2-M8 |
Confirm the nominal rope diameter and the approved mounting drawing before ordering replacement components or fabricating a mounting plate. The original metric and imperial entries are preserved as supplied.
First-Layer Performance and Rope Storage
The original table contains two independent groups: electrical performance on the left and rope-layer capacity on the right. A pulling condition on the left does not correspond to the rope layer shown beside it.
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
|
Line Pull Ibs (kgs) |
Line Speed Ft/min (m/min) |
Current A |
Layer of cable |
Rated line pull lbs(kgs) |
Total Rope On Drum ft (m) |
||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 3500(1588) | 8.5(2.6) | |
| 0 | 14.4(4.4) | 14.4(4.4) | 28 | 14 | 2 | 2932(1331) | 18.7(5.7) |
| 1000(454) | 9.8(3.0) | 11.1(3.4) | 80 | 50 | 3 | 2523(1145) | 29.8(9.1) |
| 2500(1134) | 7.2(2.2) | 8.8(2.7) | 150 | 70 | 4 | 2214(1005) | 44.0(13.4) |
| 3500(1588) | 5.9(1.8) | 4.9(1.5) | 170 | 100 | 5 | ||
Compare Voltage Versions at the Intended Load
Both versions list a no-load speed of 4.4 m/min. At 2,500 lb, the listed 24V speed is higher, while at 3,500 lb the table lists 1.8 m/min for 12V and 1.5 m/min for 24V. The complete operating points should therefore be reviewed rather than assuming one voltage is faster at every load.
- 12V rated-pull point: Listed at 1.8 m/min and 170 A.
- 24V rated-pull point: Listed at 1.5 m/min and 100 A.
- Installation review: Confirm supply, cabling, connection and protection requirements.
The listed performance points do not replace the electrical installation instructions. Request permitted operating duration and cooling requirements separately.
Review the Working Rope Layer
The listed pulling capacity decreases from 3,500 lb on the first layer to 2,214 lb on the fourth. Cumulative rope storage reaches 13.4 m on the fourth layer.
The original fifth-layer entry has no pull or storage values. It is retained as supplied and must not be interpreted as zero capacity or an additional approved rope allowance.
EWT3500A Dimensions and Version Comparison
The comparison table includes D, A and U versions. The A version is listed at 368 × 115 × 123 mm with a net weight of 12.3 kg. Control or structural differences beyond the published information require confirmation.
| ITEM | EWT3500D | EWT3500A | EWT3500U |
| Overall dimensions |
14.3″×4.5″×4.8″
368mm×115mm×123 mm |
14.3″×4.5″×4.8″
368mm×115mm×123 mm |
14.6″×4.5″×6.3″
372mm×115mm×160 mm |
| (L×W×H) | |||
| Net weight (Ibs) | 24.7 | 27.1 | 26.9 |
| (kgs) | 11.2 | 12.3 | 12.2 |
The original metric and imperial dimensions are retained. The D and A length entries require reconciliation against the current drawing before fabrication. Also confirm whether the listed dimensions and net weight include the separate control box.
- Mounting geometry: Check the two-M8 interface using the model drawing.
- Control placement: Account separately for the supplied control box and wiring.
- Operating clearance: Maintain access to the clutch and rope path.
A matching hole spacing alone does not confirm that the mounting structure, fasteners or available clearance are suitable.
OEM Requirements and Export Supply Information
Irun Winch accepts OEM orders for this product. The selected electrical and control configuration should be established before reviewing branding or packaging changes.
- Configuration inputs: Required voltage, control arrangement, quantity and installation information.
- Branding requests: Logo artwork, proposed marking position and product label requirements for review.
- Packing requests: Export carton artwork, identification labels and packing instructions.
- Technical changes: Drawings or specifications for proposed rope, mounting or control modifications.
The supplied information does not establish a standard customization menu for colors, materials or structural changes. Irun Winch should confirm feasibility, sample requirements and any additional development before approving modifications.
Listed supply details include export carton packaging, ocean or air transportation and China as the place of origin. A CE certificate is listed; request the applicable model documentation. MOQ, production lead time and sample terms require order-specific confirmation.
Applications and Purchasing Fit
The EWT3500A can be evaluated for ATV utility and vehicle recovery projects where the pulling requirement, mounting arrangement and electrical supply match the confirmed specification.
- ATV equipment installers: Review the supporting structure, electrical supply and operator controls.
- Utility accessory distributors: Define voltage-specific supply packages and included components.
- OEM purchasing teams: Confirm installation drawings, separate control-box requirements and product labeling.
The original description does not provide a waterproof rating or universal vehicle fitment approval. Any environmental protection requirement needs model-specific supporting documentation.
Typical Order Review for an ATV Accessory Distributor
This illustrative example describes a procurement review, not a completed customer project. An ATV accessory distributor is considering EWT3500A for customers who require a defined winch and separate control-box package.
Buyer Requirement: The distributor needs confirmed mounting dimensions, a voltage-specific performance sheet and a clear equipment list. It also needs to know whether the control-box dimensions, wiring and mounting hardware are included in the supplied installation information.
Solution: Irun Winch would review the selected voltage, quantity, control preference and packaging request. The configuration review would confirm the A-version drawing, reconcile the published length entries and identify the supplied control components. Any logo or carton changes would be recorded as approved OEM requirements.
Result: The intended outcome is a documented product package suitable for purchasing and installer review. This example does not claim a delivered order, measured performance improvement or verified reduction in installation time.
ATV Utility Winch Questions for Procurement
Does the EWT3500A include a separate control box?
Yes. The supplied feature list states that each winch comes with a separate control box. Confirm the included switch, wiring and mounting components in the quotation.
Is 24V operation faster than 12V at every load?
Not according to the supplied table. The listed 24V speed is higher at some intermediate loads, but the rated-pull row lists 1.8 m/min for 12V and 1.5 m/min for 24V.
Does the ATV utility winch retain 3,500 lb pull on every layer?
No. The listed capacities are 3,500 lb on the first layer, 2,932 lb on the second, 2,523 lb on the third and 2,214 lb on the fourth.
What does the blank fifth-layer entry mean?
No fifth-layer pull or rope storage value is supplied. Request clarification rather than treating the blank entry as an approved operating specification.
What dimensions apply to EWT3500A?
The metric table lists 368 × 115 × 123 mm and a net weight of 12.3 kg. Confirm the approved drawing, reconcile the imperial length and check how the separate control box is accounted for.
Is a waterproof rating available?
No IP rating is included in the supplied description. Request supporting documentation if the installation requires a defined environmental protection level.
What compliance documents should be requested?
The product information lists a CE certificate. Request the applicable model documents, operating manual, installation drawing and wiring diagram for the selected configuration.
What are the MOQ, production lead time and sample conditions?
These are not specified in the supplied data. Irun Winch should confirm them for the required quantity, voltage, control package and OEM scope.
