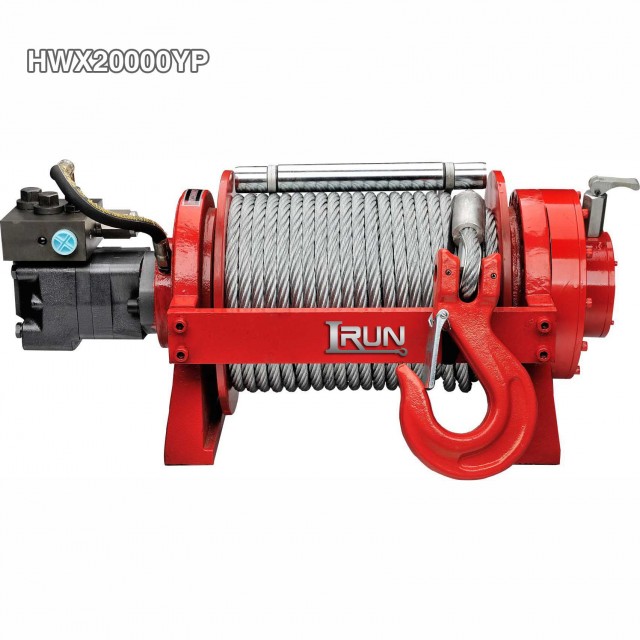

HWX20000YP 20000 lb Hydraulic Industrial Winch with Multi-Disc Brake and Counterbalance Valve
The HWX20000YP hydraulic industrial winch combines a listed 20,000 lb low-speed first-layer pull with a hydraulic multi-disc brake and counterbalance valve for tow truck and recovery equipment integration.
- - Two-speed transmission: Listed reduction ratios of 39:1 in low speed and 6:1 in high speed, with different pulling capacities.
- - Hydraulic requirements: A listed 100 mL/rev motor displacement, 15–75 L/min flow range and 17.5 MPa pressure specification.
- - Supplied equipment: Hydraulic multi-disc brake, counterbalance valve and steel wire rope tensioner are listed as supplied.
- - Rope and mounting: Listed with 14 mm × 48 m wire rope and an eight-M14 mounting arrangement requiring a model-specific drawing.
- - OEM quotation: Irun Winch accepts OEM orders; provide pump data, mounting requirements, quantity and any branding or packaging requests.
- Description
Industrial Winch HWX20000YP for Tow Truck Hydraulic Integration
The HWX20000YP is listed as a hydraulic industrial winch for tow trucks, recovery vehicles and engineering equipment. Its published tables specify a 20,000 lb (9,072 kg) first-layer pull in low-speed mode, together with separate high-speed pulling values. A hydraulic multi-disc brake, counterbalance valve and steel wire rope tensioner are included in the supplied feature list.
- - Low-speed reduction ratio: 39:1.
- - High-speed reduction ratio: 6:1.
- - Rated low-speed operating point: 20,000 lb at 17.5 MPa and 75 L/min in the published table.
Selection should begin with the required pulling task, available hydraulic supply and confirmed model configuration. The 20,000 lb rating must not be applied to high-speed operation or every rope layer.
Industrial Winch Multi Disc Brake and Counterbalance Valve Review
Hydraulic Multi-Disc Brake
The supplied feature list identifies a hydraulic multi-disc brake. Its actuation, release conditions and interaction with the hydraulic circuit need to be confirmed through the model-specific documentation.
- - Request the brake operating and maintenance instructions.
- - Confirm the brake connections and release requirements.
- - Identify inspection procedures and any application restrictions.
The supplied description does not establish whether the brake is spring-applied, its release pressure or approval for lifting. These details should not be inferred from the term “multi-disc brake.”
Supplied Counterbalance Valve
A counterbalance valve is listed as supplied equipment. Its presence does not by itself establish the complete hydraulic control arrangement or the settings required for a particular installation.
- - Confirm the valve model, connections and specified settings.
- - Request the hydraulic schematic for the supplied configuration.
- - Review compatibility with the proposed control valve and return circuit.
The installer should assess the winch, brake and valve as one hydraulic system. The supplied valve should not be treated as a substitute for a reviewed circuit design.
Two-Speed Planetary Reducer
The feature list describes a patented two-stage planetary reducer. The specification table gives separate high- and low-speed reduction ratios, allowing buyers to distinguish pulling mode from faster line movement.
- - Low speed: Listed reduction ratio of 39:1.
- - High speed: Listed reduction ratio of 6:1.
- - Mode selection: Confirm the shifting mechanism and permitted operating procedure.
The supplied information does not establish whether shifting under load is permitted. Patent reference details and reducer material should be requested if required for technical approval.
Industrial Winch Specifications for Pump and Mounting Assessment
The following specifications reproduce the supplied hydraulic and mechanical data. Model identity, dimensions and document applicability require confirmation before installation approval.
| Listed product model | HWX20000YP; final model designation requires confirmation |
|---|---|
| Drive type | Hydraulic |
| Rated low-speed first-layer line pull | 20,000 lb (9,072 kg) |
| Listed hydraulic motor displacement | 100 mL/rev |
| Listed oil flow range | 15–75 L/min |
| Listed pressure specification | 17.5 MPa |
| Reduction ratios | Low speed: 39:1; high speed: 6:1 |
| Reducer description | Two-stage planetary reducer, described as patented |
| Brake | Hydraulic multi-disc brake |
| Listed supplied equipment | Counterbalance valve and steel wire rope tensioner |
| Wire rope diameter × length | 14 mm × 48 m; listed imperial size: 9/16 in × 157 ft |
| Drum diameter × length | 138 mm × 316 mm |
| Published mounting dimensions | 431 × 64 × 192 mm; 8-M14. Use the approved drawing to interpret hole locations. |
| Overall dimensions and net weight | Require confirmation for HWX20000YP; the supplied dimension table uses HWP model designations |
| Materials and finish | Gear material, housing material and finish require confirmation |
| Compliance information | CE certificate listed; request documentation for the confirmed model |
| Origin and packaging | China; export pallet |
| Transportation | Ocean or air |
| MOQ, lead time and sample terms | Confirm for the selected configuration, quantity and OEM scope |
The three mounting dimensions are not a substitute for a hole-layout drawing. Confirm the exact model, mounting arrangement, fastener requirements and installation envelope before fabrication.
Industrial Winch Low and High Speed Hydraulic Performance Data
The published table varies both flow and pressure between rows. Each row therefore represents a different hydraulic operating point, not a constant-flow comparison. Low- and high-speed modes also have different listed pulling capacities.
| Low-speed pull lb (kg) | High-speed pull lb (kg) | Pressure MPa | Flow L/min | Low-speed line speed m/min | High-speed line speed m/min |
|---|---|---|---|---|---|
| 0 | 0 | 2.5 | 15 | 1.8 | 8.3 |
| 4,000 (1,814) | 696 (316) | 4.2 | 30 | 3.6 | 18.5 |
| 8,000 (3,629) | 1,391 (631) | 8.5 | 50 | 6.0 | 32.3 |
| 15,000 (6,804) | 2,609 (1,183) | 14.0 | 60 | 7.2 | 39.4 |
| 20,000 (9,072) | 3,478 (1,578) | 17.5 | 75 | 9.0 | 50.0 |
- - At 75 L/min and 17.5 MPa, the table lists 20,000 lb at 9.0 m/min in low-speed mode.
- - At the same stated supply point, high-speed mode lists 3,478 lb at 50.0 m/min.
- - Performance from a lower-flow hydraulic supply should not be inferred from the 75 L/min row.
These are supplied listing values and require model-specific confirmation. The hydraulic review should also cover return requirements, cooling, filtration, connections and any restrictions on the two speed modes.
Industrial Winch Rope Layer Capacity and Cumulative Drum Storage
The supplied layer table lists lower pulling capacity as rope accumulates on the drum. The following table retains the stated pull and cumulative storage values without using the separate, unclear flow-based speed columns.
| Rope layer | Listed rated pull lb (kg) | Cumulative rope on drum ft (m) |
|---|---|---|
| 1 | 20,000 (9,072) | 33.8 (10.3) |
| 2 | 16,889 (7,661) | 73.8 (22.5) |
| 3 | 14,615 (6,629) | 117.8 (35.9) |
| 4 | 12,881 (5,843) | 157.5 (48.0) |
These pull values must not be transferred to high-speed mode. Confirm their operating basis, the required retained wraps and rope handling procedures in the approved technical documents.
Industrial Winch OEM Scope and Equipment Application Requirements
Irun Winch accepts OEM orders for this product. Hydraulic connections, installation requirements and supplied equipment should be agreed before evaluating branding or packaging changes.
- - Technical review inputs: Pump flow, available pressure, circuit information, mounting drawing and intended pulling task.
- - OEM requests for assessment: Logo marking, identification labels, documentation and pallet marking requirements.
- - Changes requiring separate confirmation: Rope specifications, mounting structure, brake or valve configuration and control arrangements.
The published information does not define a standard customization menu. Irun Winch should confirm which requests are available and which need additional drawings, samples or development.
Applications and Buyer Fit
The original description identifies wreckers, trailers, haulage vehicles, engineering machinery and special vehicles as application categories. Each installation still requires a separate capacity, hydraulic and structural assessment.
- - Tow truck builders integrating a hydraulic pulling system.
- - Trailer and haulage equipment manufacturers checking rope capacity and mounting requirements.
- - Engineering equipment integrators reviewing pump compatibility and operating documentation.
Buyers comparing industrial winches can review the industrial winches range. The supplied information does not establish lifting certification or universal compatibility with every vehicle in these categories.
Industrial Winch Typical Tow Truck Builder Configuration Example
This illustrative scenario describes a procurement review, not a documented delivery. A tow truck builder is evaluating a two-speed hydraulic winch for a new recovery platform and needs to verify the pulling mode, hydraulic supply and physical installation.
Buyer Requirement
The builder requires a reviewed low-speed pulling capacity, a clear distinction between speed modes and confirmed brake and counterbalance valve documentation. The mounting fabricator also needs the correct model drawing because the supplied listing uses both HWX and HWP designations.
Solution
In this scenario, Irun Winch would review the proposed pump data, hydraulic schematic, mounting layout and quantity. The technical submission would identify the exact model, distinguish the listed 20,000 lb low-speed point from the 3,478 lb high-speed point, and confirm supplied brake, valve and tensioner details. Dimensions and weight would be agreed before fabrication.
Result
The intended outcome is an approved model specification and installation document set before order placement. This example does not claim a completed project, measured recovery performance or verified delivery result.
Industrial Winch Questions on Speed Modes and Hydraulic Fitment
Performance and Installation
Can this industrial winch pull 20,000 lb in high-speed mode?
The published table does not support that claim. At 17.5 MPa and 75 L/min, it lists 20,000 lb in low-speed mode and 3,478 lb in high-speed mode.
What hydraulic supply is listed?
The specifications state 15–75 L/min flow, 17.5 MPa pressure and 100 mL/rev motor displacement. The proposed circuit must be reviewed against the confirmed model requirements.
Why does the table show higher line speed at higher pull?
Flow changes from 15 to 75 L/min across the rows, while pressure also changes. The table does not compare different loads under a constant hydraulic supply.
Are overall dimensions and weight confirmed for HWX20000YP?
Not from the supplied information. The dimension table names HWP20000YP and HWP20000Y3P, so their values should not be assigned to HWX20000YP without confirmation.
Does “industrial” mean the winch is approved for lifting?
No lifting approval is established by the supplied data. The product is described for pulling and recovery applications, not as a certified lifting hoist.
Documents and Procurement
Are the counterbalance valve and rope tensioner supplied?
Both are listed as supplied. Confirm the actual components, specifications and any configuration differences in the quotation.
What documents should buyers request from industrial winch manufacturers?
Request the model-specific drawing, hydraulic schematic, performance table, operating manual, brake and valve specifications, and applicable compliance documents.
Is CE documentation available?
The product information lists a CE certificate. Request documents covering the confirmed model and supplied configuration.
Can Irun Winch review OEM requirements?
Irun Winch accepts OEM orders. Submit branding, labeling and packaging requests alongside the technical specification for scope confirmation.
What are the MOQ, lead time and sample terms?
These are not published in the supplied data. Request confirmation for the exact model, equipment scope, quantity and OEM requirements.
About Irun Winch and Its Industrial Recovery Equipment Resources
Established in 1997, Zhejiang Jinhua Runye Tech. Co., Ltd. (Irun Winch) develops and manufactures vehicle winches and off-road accessories, including hydraulic and industrial models. Precision machining equipment, dedicated R&D resources and comprehensive winch test systems support its product development and manufacturing activities. Irun Winch supplies customers in more than 50 countries and regions and provides OEM service for recovery, towing and engineering equipment sourcing.
Request an Industrial Winch Quote with Hydraulic System Details
The following information helps Irun Winch define the technical review and quotation:
- - Required quantity, intended pulling task and low- or high-speed operating needs.
- - Available pump flow, pressure and proposed hydraulic circuit information.
- - Mounting layout, available installation space and required rope specification.
- - Brake, valve, control and supplied accessory requirements.
- - Delivery destination, OEM marking needs and any sample or document requests.
Order confirmation should identify the exact model, approved dimensions, hydraulic requirements, supplied equipment, MOQ, lead time and pallet packing details.
