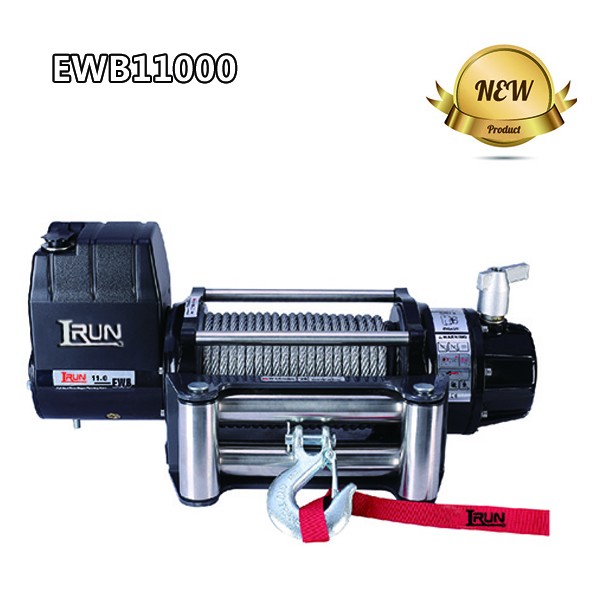

11,000 lb Electric Winch for Off-Road Recovery
The EWB11000 electric winch provides an 11,000 lb rated line pull for off-road recovery, towing and vehicle equipment applications. Its IP67-rated waterproof design, internal gearbox brake, stainless steel external components and 12V or 24V motor options support use in demanding outdoor environments. Irun Winch can review OEM project requirements according to the selected configuration.
- Rated Line Pull: 11,000 lb (4,990 kg)
- Waterproof Protection: IP67-rated patented waterproof design
- Motor Options: Series-wound motor with 12V or 24V options
- Braking System: Internal gearbox brake with automatic braking action
- Control Method: Sealed control pack with compression-resistant rubber hand remote control
For EWB11000 specifications or OEM project review, provide the required voltage, estimated quantity, intended application and any branding or packing requirements.
- Description
11,000 lb Electric Winch for Off-Road Recovery and Towing Projects
Waterproof Protection for Off-Road Recovery
The EWB11000 uses an IP67-rated patented waterproof design for applications where the winch may be exposed to rain, mud, dust and wet off-road conditions. The sealed control pack and external component design help support reliable operation in recovery and towing environments where equipment protection is an important sourcing requirement.
Internal Gearbox Brake and Corrosion-Resistant Components
The winch uses an internal gearbox brake designed to support controlled winching operation. Its stainless steel rotary clutch and external fasteners are intended to improve resistance to corrosion in outdoor environments. The internal brake arrangement also helps avoid placing the braking mechanism directly on the drum.
- Internal gearbox brake for controlled winching operation
- Stainless steel rotary clutch for manual clutch engagement
- Stainless steel external screws and components
- Sealed copper-connection control pack
- Over-current protection available for selected configurations
Product Specifications
| EWB11000 Standard Specifications | |
|---|---|
| Model | EWB11000 |
| Rated Line Pull | 11,000 lb (4,990 kg) |
| Waterproof Rating | IP67-rated waterproof design |
| Motor Type | Series-wound motor |
| 12V Motor Input / Output | Input: 4.3 kW / 5.8 hp; Output: 2.3 kW / 3.1 hp |
| 24V Motor Input / Output | Input: 4.1 kW / 5.5 hp; Output: 3.0 kW / 4.0 hp |
| Gear Reduction Ratio | 228:1 |
| Cable Size | Ø3/8 in. × 85 ft (Ø9.2 mm × 26 m) |
| Drum Size | Ø2.48 in. × 8.5 in. (Ø63 mm × 217 mm) |
| Mounting Bolt Pattern | 10 in. × 4.5 in. (254 mm × 114.3 mm), 4 × M10 |
| Compliance | CE compliant |
Line Speed and Current Draw
| Line Pull | 12V Line Speed | 24V Line Speed | 12V Current | 24V Current |
|---|---|---|---|---|
| 0 lb | 32.8 ft/min (10.0 m/min) | 34.8 ft/min (10.6 m/min) | 75 A | 50 A |
| 3,000 lb (1,361 kg) | 15.4 ft/min (4.7 m/min) | 17.1 ft/min (5.2 m/min) | 160 A | 80 A |
| 9,000 lb (4,082 kg) | 7.2 ft/min (2.2 m/min) | 9.8 ft/min (3.0 m/min) | 320 A | 150 A |
| 11,000 lb (4,990 kg) | 5.6 ft/min (1.7 m/min) | 6.9 ft/min (2.1 m/min) | 360 A | 170 A |
Line speed and current draw vary according to line pull, supply voltage and installation conditions.
Line Pull and Rope Capacity by Layer
| Cable Layer | Rated Line Pull | Total Rope on Drum |
|---|---|---|
| 1 | 11,000 lb (4,990 kg) | 17.4 ft (5.3 m) |
| 2 | 8,776 lb (3,967 kg) | 39.4 ft (12.0 m) |
| 3 | 7,286 lb (3,305 kg) | 65.0 ft (19.8 m) |
| 4 | 6,233 lb (2,867 kg) | 85.3 ft (26.0 m) |
Rated line pull decreases as additional cable layers are wound onto the drum.
Available EWB11000 Model Variants
| Model | Overall Dimensions | Metric Dimensions | Net Weight |
|---|---|---|---|
| EWB11000U | 23.3 in. × 6.3 in. × 10.0 in. | 591 mm × 160 mm × 254 mm | 84.9 lb / 38.5 kg |
| EWB11000F | 23.3 in. × 6.3 in. × 9.8 in. | 591 mm × 160 mm × 248 mm | 89.3 lb / 40.5 kg |
OEM Requirements for EWB11000 Projects
Irun Winch reviews OEM requirements for the EWB11000 according to the required voltage, selected model variant, order quantity and intended recovery application. Buyers should identify any branding, product label, packaging, product documentation or market-specific requirements before confirming the final configuration. The scope of OEM work is evaluated according to production feasibility and the selected product version.
Applications for the EWB11000 Electric Winch
- Off-road vehicle recovery in wet, muddy and outdoor environments
- Vehicle towing and recovery equipment
- 4×4 vehicle accessories and off-road equipment projects
- Recovery systems for tow trucks and service vehicles
- Equipment distributors and private-label sourcing projects
Typical Procurement Scenario
A recovery equipment buyer may require an electric winch for off-road vehicles that will operate in wet, dusty or muddy environments where waterproof protection and corrosion resistance are important.
Buyer Requirement: The buyer needs an electric winch with 11,000 lb pulling capacity, a compatible 12V or 24V electrical version, suitable mounting dimensions and a protected control system for outdoor recovery work.
Solution: The EWB11000 provides an IP67-rated waterproof design, an internal gearbox brake, stainless steel external components, a 228:1 gear reduction ratio and EWB11000U or EWB11000F model options.
Result: The buyer can compare voltage, dimensions, mounting requirements and control preferences before confirming a suitable winch configuration for the intended recovery equipment project.
Frequently Asked Questions
What is the rated pulling capacity of the EWB11000?
The EWB11000 has a rated line pull of 11,000 lb (4,990 kg) on the first cable layer. Pulling capacity decreases as additional cable layers build up on the drum.
Is the EWB11000 suitable for wet off-road conditions?
The EWB11000 uses an IP67-rated waterproof design and sealed control pack for off-road recovery environments where exposure to water, mud and dust may occur.
Is the EWB11000 available in 12V and 24V versions?
Yes. The product is available with 12V or 24V series-wound motor options. Buyers should select the voltage that matches the intended vehicle or equipment electrical system.
What is the purpose of the internal gearbox brake?
The internal gearbox brake supports controlled winching operation. Its brake arrangement is designed to operate inside the gearbox rather than directly on the drum.
What is the difference between EWB11000U and EWB11000F?
The two versions have different overall dimensions and net weights. Buyers should confirm the selected variant against the available installation space, mounting arrangement and recovery equipment design.
Can CE and waterproof documentation be provided?
Yes. CE documentation and IP67 waterproof test information can be provided upon request. Buyers should identify the required documents during the sourcing discussion.
About Irun Winch
Zhejiang Jinhua Runye Tech. Co., Ltd. (Irun Winch), established in 1997, develops and manufactures vehicle winches and off-road accessories for recovery, towing and utility applications. The manufacturing facility covers approximately 9,746.1 square meters and has an annual production capacity of 200,000 winches. The EWB11000 electric winch is part of Irun Winch’s off-road recovery range for buyers requiring an 11,000 lb electric winch with waterproof protection and 12V or 24V options.
Information to Prepare for a Quote
For an EWB11000 inquiry, please provide the required model version, 12V or 24V preference, estimated quantity, intended application, vehicle or equipment mounting requirements, destination market, branding requirements and packing details. If CE documents, waterproof information, product drawings, samples or technical specifications are required, these should be identified during the initial project discussion.
