- Description

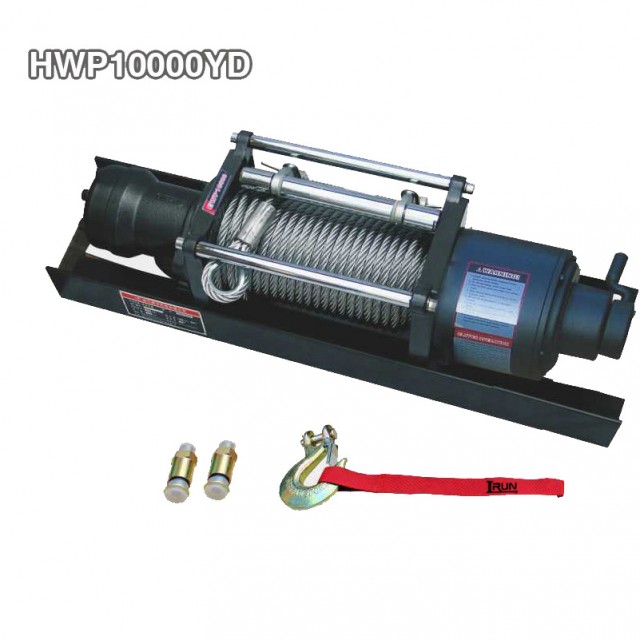

2 Speed Hydraulic Industrial Winch Item NO. HWP10000YD pulling capacity up to 10000 lbs
Is ideal for wrecker, tow turck,utility and trailer applications with features as following:
1.Full steel reducer gear
2.Patented two stage planetary gear reducer
3.Two speed and clutch integrate with one handgrip
4.Patented clutch and speed shift structure
5.Clutch and two speed gear actions auto engagement
6.Steel winch bracket
7.Automatic screw cone braking action
8.SWR tensioner supplied
HWP10000YD
SPECIFICATION | |
Rated line pull | 10000lbs(4536kgs) |
Motor: permanent magnet | 50ml/r |
Oil Flow | 15~40L/min |
Pressure | 12.5Mpa |
Gear reduction ratio | High speed: 6:1;Low speed: 28:1 |
Cable (Dia.× L) | Ø3/8 “×85 ‘ (Ø9.2mm×26m) |
Drum size (Dia.× L) | Ø2.48″×8. 9″ (Ø63mm×223mm) |
Mounting bolt pattern | 22.4 “×20.5 “×4.5 ” (570mm×520mm×114.3mm) 4-M10 |
Line pull lbs (kgs) |
Pressure
Mpa(Psi) |
Flow
G/min (L/min) |
Line speed ft/min(m/min) | ||
Low speed | High speed | Low speed | High speed | ||
0 | 0 | 2.0(290.1) | 4.0(15) | 7.2(2.2) | 41.7(12.7) |
4000(1814) | 696(316) | 3.9(565.6) | 6.6(25) | 12.5(3.8) | 72.5(22.1) |
6000(2722) | 1043(473) | 7.5(1087.7) | 9.2(35) | 18.0(5.5) | 103.0(31.4) |
8000(3629) | 1391(631) | 10.5(1522.8) | 10.6(40) | 20.3(6.2) | 117.5(35.8) |
10000(4536) | 1739(789) | 12.5(1812.9) |
Layer of cable |
Rated line pull
Per layer lbs(kgs) |
Total rope on drum
ft (m) |
White oil flow10L/min | |
Low speed | High speed | |||
1 | 10000(4536) | 17.4(5.3) | 20.3(6.2) | 117.5(35.8) |
2 | 7969(3615) | 39.4(12.0) | 26.2(8.0) | 149.9(45.7) |
3 | 6624(3005) | 65.0(19.8) | 31.8(9.7) | 182.7(55.7) |
4 | 5667(2571) | 85.3(26.0) | 37.4(11.4) | 215.6(65.7) |
ITEM | HWP10000YD | ||
Overall dimensions | 23.6″×8.3″ × 7.5″ | ||
(L×W×H) | 600mm×210 mm×191mm | ||
Net weight (Ibs) | 99 | ||
(kgs) | 45 |
