ATV winch 3000LB Item No.EWX3000D

Advancement in development of winches is making them easier, durable and affordable but also about like rusting. With the EWX3000D model of ATV Winches is a ATV winch with an average of 9.5 KG weight that is effective in pulling heavier masses of up to 1.361 Tones (1361 KGs).

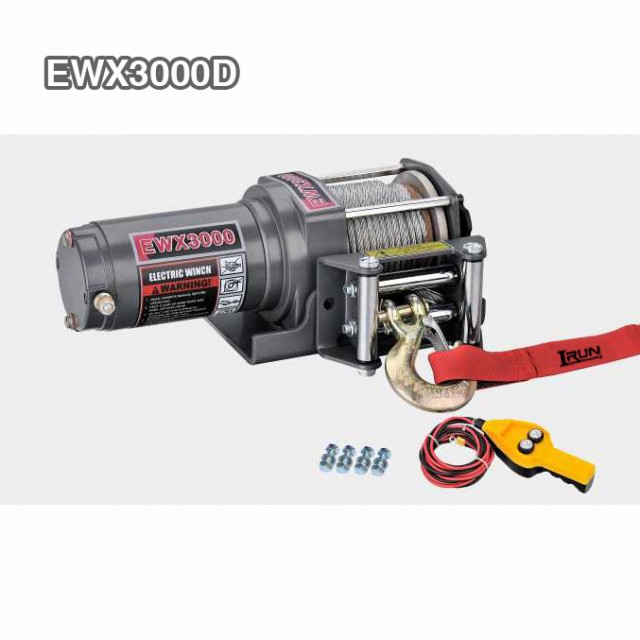

All our ATV Winches are an outstanding work of art in their designs, but this particular EWX3000D model winches for ATV have design to yearn for .It has a dark body, a golden colored hook and a silvery colored string that makes it mouthwatering by the looks.

Features:

1.)Full steel reducer gear
2.)Automatic braking action
3.)Free spooling clutch
4.)DC 12V or DC 24V Power drive optional
5.)High current workign switch control directly
6.) ATV handlebar switch control
7.)Control box detachable fixing optional
8.) Control box Separate fixing optional
9.)Remote control through control box and switch
10.)Wireless remote control available

EWX3000

SPECIFICATION
Rated line pull	3000 lbs (1361 kg)
Motor: permanent magnet	12V:Input: 2.2kW / 2.9hp; Output: 0.8kW / 1.1hp
	24V:Input: 2.4kW / 3.2hp; Output: 0.9kW / 1.2hp
Gear reduction ratio	153:1
Cable (Dia.× L)	Ø3/16″×46′(Ø4.8mm×14m)
Drum size (Dia.× L)	Ø1.24″×2.87″ (Ø31.5mm×73 mm)
Mounting bolt pattern	3.13″ (79.5 mm) 2-M8



Pull Speed Amperes Volts First layer					Line Pull And Rope Capacity In Layer
Line Pull Ibs (kgs)	Line Speed Ft/min (m/min)		Current A		Layer of cable	Rated line pull lbs(kgs)	Total Rope On Drum ft (m)
	12V DC	24V DC	12V DC	24V DC	1	3000(1361)	5.6(1.7)
0	10.2(3.1)	9.8(3.0)	18	15	2	2370(1075)	12.1(3.7)
1000(454)	7.5(2.3)	8.9(2.7)	90	45	3	1960(889)	19.7(6.0)
2000(907)	5.9(1.8)	7.5(2.3)	130	65	4	1670(756)	27.9(8.5)
3000(1361)	4.3(1.3)	6.2(1.9)	180	100	5	1460(662)	37.1(11.3)
					6	1290(585)	45.9(14.0)



ITEM	EWX3000D	EWX3000A	EWX3000U
Overall dimensions	12.8″×4.5″×4.3″	12.8″×4.5″×4.3″	13.0″×4.5″×5.9 “
(L×W×H)	324mm×113mm×108 mm	324mm×113mm×108 mm	331mm×113mm×150mm
Net weight (Ibs)	21.0	21.8	21.6
(kgs)	9.5	9.9	9.8

Overall Dimensions: 12.8″ x 4.5″ x 4.3″
(L x W x H) 324mm x 113mm x 108mm

Net Weigh: 9.5 KGS

Looking for ideal Waterproof ATV winch Manufacturer & supplier ? We has a wide selection at great prices to help you get creative. All the ATV Winches are quality guaranteed. We are China Origin Factory of Winches For Atvs. If you have any question, please feel free to contact us.
