11000 lb Industrial Hydraulic Truck Winch With Patent hardened steel gear reducer
This 11,000 lb hydraulic truck winch range combines automatic braking and a hardened steel two-stage planetary reducer with three clutch configurations for truck, trailer and recovery equipment installations.

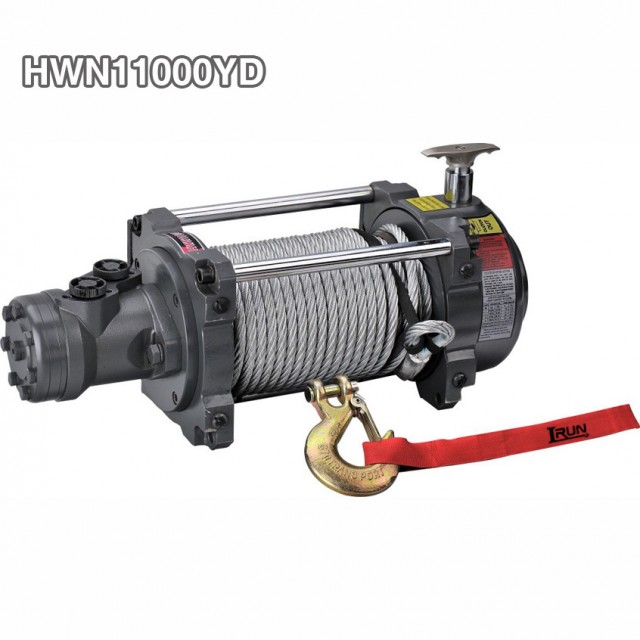

- Three models: HWN11000YD with manual clutch, HWN11000Y1D with air clutch and HWN11000Y2D with combined manual and air clutch.
- Pulling capacity: Rated at 11,000 lb on the first rope layer, with separate capacities listed for subsequent layers.
- Hydraulic specification: Listed with 65 mL/rev motor displacement, 15–45 L/min oil flow and 12.5 MPa pressure.
- Installation package: Listed with 10.2 mm × 25.5 m wire rope; roller fairlead is sold separately.
- OEM inquiries: Irun Winch accepts OEM orders; provide the selected clutch model, quantity and installation requirements for quotation.
- Description
Hydraulic Truck Winch with Three Clutch Options for Recovery Work
The HWN11000YD, HWN11000Y1D and HWN11000Y2D hydraulic truck winch models provide a listed first-layer pulling capacity of 11,000 lb (4,990 kg). The three models differ in clutch configuration, allowing equipment builders to evaluate manual, air or combined manual and air operation within the same rated capacity range.
The product is intended for pulling and recovery applications involving trucks, utility vehicles, trailers and related equipment. Selection should account for the available hydraulic supply, clutch access, mounting layout and working rope layer. These winches must not be used for lifting.
- Transmission: Hardened steel two-stage planetary reducer with a listed ratio of 25.5:1.
- Braking: Automatic braking action as described in the product specification.
- Mounting: A listed 254 × 114.3 mm bolt pattern with four M12 positions.
The capacity rating is not a vehicle weight limit. The intended recovery conditions and complete installation require model-specific review.
Choose the Hydraulic Truck Winch Clutch Configuration
The three model numbers identify different clutch arrangements. Confirm the required version before comparing installation drawings or approving the order.
- HWN11000YD: Manual clutch.
- HWN11000Y1D: Air clutch.
- HWN11000Y2D: Combined manual and air clutch.
For manual operation, review access to the clutch in the installed position. For air-operated versions, request the pneumatic connection and control requirements. The supplied data does not specify the required air pressure or permit assumptions about shifting under load.
HWN11000YD Manual Clutch Model
This version provides manual clutch operation. The installation review should include operator access and clearance around the clutch mechanism.
HWN11000Y1D Air Clutch Model
This version uses an air clutch. Confirm the pneumatic supply and operating arrangement alongside the hydraulic circuit before specifying the installation.
HWN11000Y2D Combined Clutch Model
This version combines manual and air clutch operation. Its listed overall height differs from the other two versions, making the model-specific drawing important for clearance checks.
Reducer and Automatic Braking Features
The product description identifies a patented hardened steel two-stage planetary reducer and automatic braking action. These features describe the pulling system but do not establish an unspecified efficiency improvement or lifting capability.
- Review the reducer and brake maintenance instructions.
- Request the patent reference if needed for technical procurement.
- Confirm the permitted operating procedures and application restrictions.
The supplied description does not identify the brake as a screw-cone or multi-disc design. The selected model's documentation should establish the actual brake mechanism.
Product Specifications
The original specification table is retained below. The listed 65 ml/r value describes motor displacement; the original motor-type label requires clarification before technical approval.
| SPECIFICATION | |
| Rated line pull | 11000 lbs (4990 kgs) |
| Motor: permanent magnet | 65ml/r |
| Oil Flow | 15~45L/min |
| Pressure | 12.5Mpa |
| Gear reduction ratio | 25.5:1 |
| Cable (Dia.× L) | Ø13/32″×83.7 ‘ (Ø10.2mm×25.5m) |
| Drum size (Dia.× L) | Ø2.8 “×8.6” (Ø72mm×219mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3mm) 4-M12 |
Hydraulic Supply and Published Performance Points
The following table changes both flow and pressure between rows. It should be read as a set of hydraulic operating points, not as a comparison of different loads under an unchanged supply.
|
Line pull lbs (kgs) |
Pressure Mpa(Psi) |
Flow G/min (L/min) |
Line speed ft/min(m/min) |
|
0 |
2.0(290.1) |
1.3(5.0) |
2.3 (0.7) |
|
3000(1361) |
4.5(652.7) |
2.6(10.0) |
4.6(1.4) |
|
6000(2722) |
6.8(986.2) |
5.3(20.0) |
8.9(2.7) |
|
9000(4082) |
9.0(1305.3) |
9.2(35.0) |
15.1(4.6) |
|
11000(4990) |
12.5(1812.9) |
10.6(40.0) |
17.4(5.3) |
- Listed rated-pull point: 11,000 lb at 12.5 MPa and 40 L/min, with a line speed of 5.3 m/min.
- Supply review: Confirm available flow, pressure, connections and return requirements for the selected model.
- Operating limits: Request the permitted duty cycle, cooling and filtration requirements.
The specification range is 15–45 L/min, while the performance table includes 5 and 10 L/min points. These original values are retained and require clarification before system design. A listed flow range does not mean that identical pulling performance is available throughout that range.
Rated Pull and Rope Capacity by Drum Layer
The 11,000 lb rating applies to the first rope layer. The original layer table shows lower pulling capacity as rope accumulates on the drum.
|
Layer of cable |
Rated line pull lbs(kgs) |
Total rope on drum ft (m) |
|
1 |
11000(4990) |
16.4 (5.0) |
|
2 |
8695(3944) |
37.2(11.3) |
|
3 |
7189(3261) |
60.9(18.6) |
|
4 |
6128(2779) |
83.7(25.5) |
The rope figures represent cumulative storage on the drum. Selection should use the capacity at the intended working layer and follow the operating manual's retained-wrap and rope-handling requirements.
Dimensions and Weight for Each Clutch Model
The manual, air and combined-clutch versions have different listed heights. Use the drawing for the actual ordered model when checking clearance, clutch access and mounting details.
| ITEM | HWN11000YD | HWN11000Y1D | HWN11000Y2D |
| Overall dimensions | 20.4″×9.6″×9.7″ | 20.4″×9.6″×8.2″ | 20.4″×9.6″×11.5″ |
| (L×W×H) | 519mm×235mm×246mm | 519mm×235mm×208mm | 519mm×235mm×291mm |
| Net weight (Ibs) | 117 | 117 | 117 |
| (kgs) | 53 | 53 | 53 |
The original metric and imperial dimensions are retained. Their width entries require reconciliation against the approved drawing before fabrication; do not substitute one unit set for the other without confirmation.
Included Equipment and Separately Supplied Accessories
The original description lists a hook and wire rope as included and states that the roller fairlead is sold separately. The wire rope tensioner is described both as included and as available, so its order status needs explicit confirmation.
- Listed included items: Hook and wire rope.
- Separate purchase: Roller fairlead.
- Confirmation required: Steel wire rope tensioner inclusion and supplied accessory quantities.
The approved quotation should provide a complete equipment list so the installer can identify any additional components required.
Applications and Selection Checks
This range is intended for pulling tasks associated with tow trucks, utility equipment, trailers, flatbed vehicles and engineering machinery. Buyers should select the clutch version according to the proposed installation rather than treating the three models as interchangeable in every detail.
- Vehicle builders: Review hydraulic supply, mounting structure and clutch access.
- Trailer equipment buyers: Match the required pulling task to the working rope-layer capacity.
- Distributors: Identify the exact model, accessory scope and technical documents for each stocked version.
For alternative capacities, review the hydraulic truck winch range. The industrial winches category provides additional product options for equipment comparison.
OEM Requirements and Order Configuration
Irun Winch accepts OEM orders. The three published clutch models provide defined product choices; requests beyond those configurations require separate review.
- Model selection: Specify HWN11000YD, HWN11000Y1D or HWN11000Y2D.
- Branding requests: Provide the logo file, proposed marking position and identification label requirements for assessment.
- Packing requests: State export carton markings, labeling and any additional packing requirements.
- Technical changes: Submit proposed rope, mounting or control changes with drawings for feasibility review.
The supplied information does not establish standard custom colors, alternative materials or unrestricted structural changes. Irun Winch should confirm approved OEM scope, MOQ, production lead time and any sample or development requirements in the quotation.
Typical Project Example for a Recovery Vehicle Builder
This illustrative example describes a procurement review, not a completed customer project. A recovery vehicle builder is comparing the three 11,000 lb models for an installation where clutch access and overhead clearance are important.
Buyer Requirement: The builder needs a defined clutch arrangement, a model-specific installation drawing and confirmation that its hydraulic supply can support the intended operating point. The purchasing team also needs a complete accessory list before approving the order.
Solution: Irun Winch would review the proposed installation and identify the requested manual, air or combined-clutch model. The review would cover the corresponding height, pneumatic requirements where applicable, mounting arrangement and hydraulic data. Tensioner inclusion, roller fairlead supply and any OEM labeling requests would be stated separately.
Result: The intended outcome is an agreed model and equipment specification before fabrication and purchasing. This example does not claim a delivered installation, measured productivity improvement or verified field result.
Hydraulic Truck Winch Purchasing Questions
What is the difference between the three model numbers?
HWN11000YD uses a manual clutch, HWN11000Y1D uses an air clutch, and HWN11000Y2D combines manual and air clutch operation. Their listed heights differ.
Does the winch provide 11,000 lb pull on every rope layer?
No. The supplied table lists 11,000 lb on the first layer, 8,695 lb on the second, 7,189 lb on the third and 6,128 lb on the fourth.
What hydraulic information is needed before ordering?
Provide available flow, pressure, the proposed circuit and the intended pulling task. Clarify the difference between the listed 15–45 L/min range and the lower-flow points in the original performance table.
Are a hook, rope tensioner and roller fairlead included?
The description lists a hook and wire rope as included. The roller fairlead is sold separately. Tensioner inclusion requires confirmation because the original description gives two different supply statements.
Can these models be used for lifting?
No. The supplied product instructions explicitly exclude lifting use.
What compliance documents can buyers request?
The supplied description states SAE J706 and CE compliance. Request the applicable certificate, declaration or test documentation and confirm its model coverage before relying on the claim for procurement approval.
What are the MOQ, lead time and sample conditions?
These are not specified in the supplied information. Irun Winch should confirm them for the selected clutch model, quantity, accessory package and OEM scope.
